PROPELLER SH AFT
REMOVAL
(1) Secure vehicle to prevent it from rolling.
(2) Make insta lling r eference ma rks on propeller
sh aft (Fig. 6) and (Fig. 7).
(3) Remove ret ain ing bracket bolts (Fig. 8) and
(Fig. 9).
(4) Remove propeller shaft bolt s from rear axle
and transmission at th e flange.
(5) Remove pr opeller shaft int ermediate bearing
nuts from ret ain ing br acket an d bracket for brake
cable.
NOTE: The brake cable bracket is only installed in
vehicles with wheelbase 3550 mm

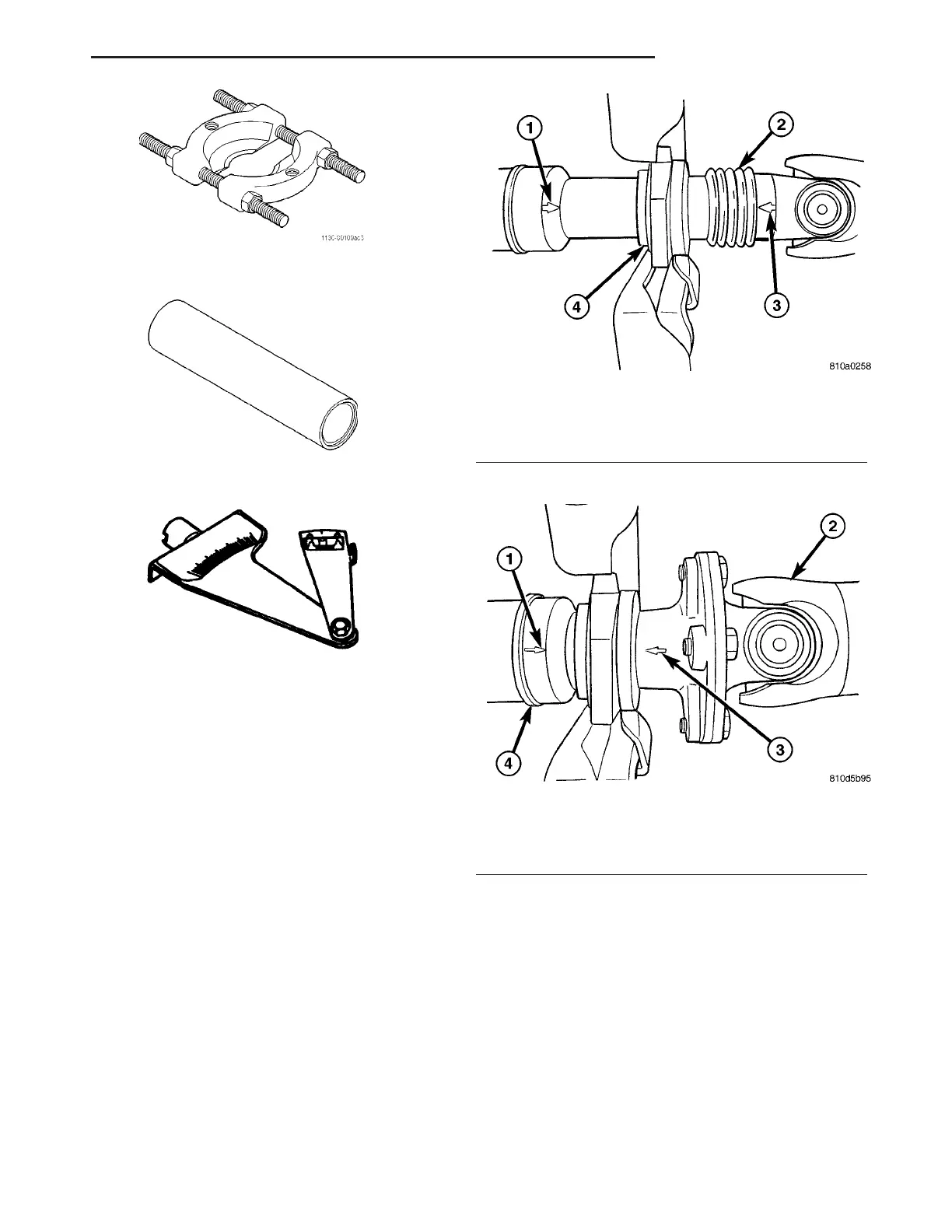

SPLITTER 1130
INSTALLER 9275
INCLINOMETER 7663
Fig. 6 ALIGNMENT MARKS
1 - ALIGNMENT MARK
2 - BOOT
3 - ALIGNMENT MARK
4 - CENTER BEARING
Fig. 7 ALIGNMENT MARKS 3 PIECE SHAFT
1 - REFERNCE MARK
2 - CENTER SHAFT
3 - REFERENCE MARK
4 - REAR SHAFT
VA PROPELLER SHAFT 3 - 7
