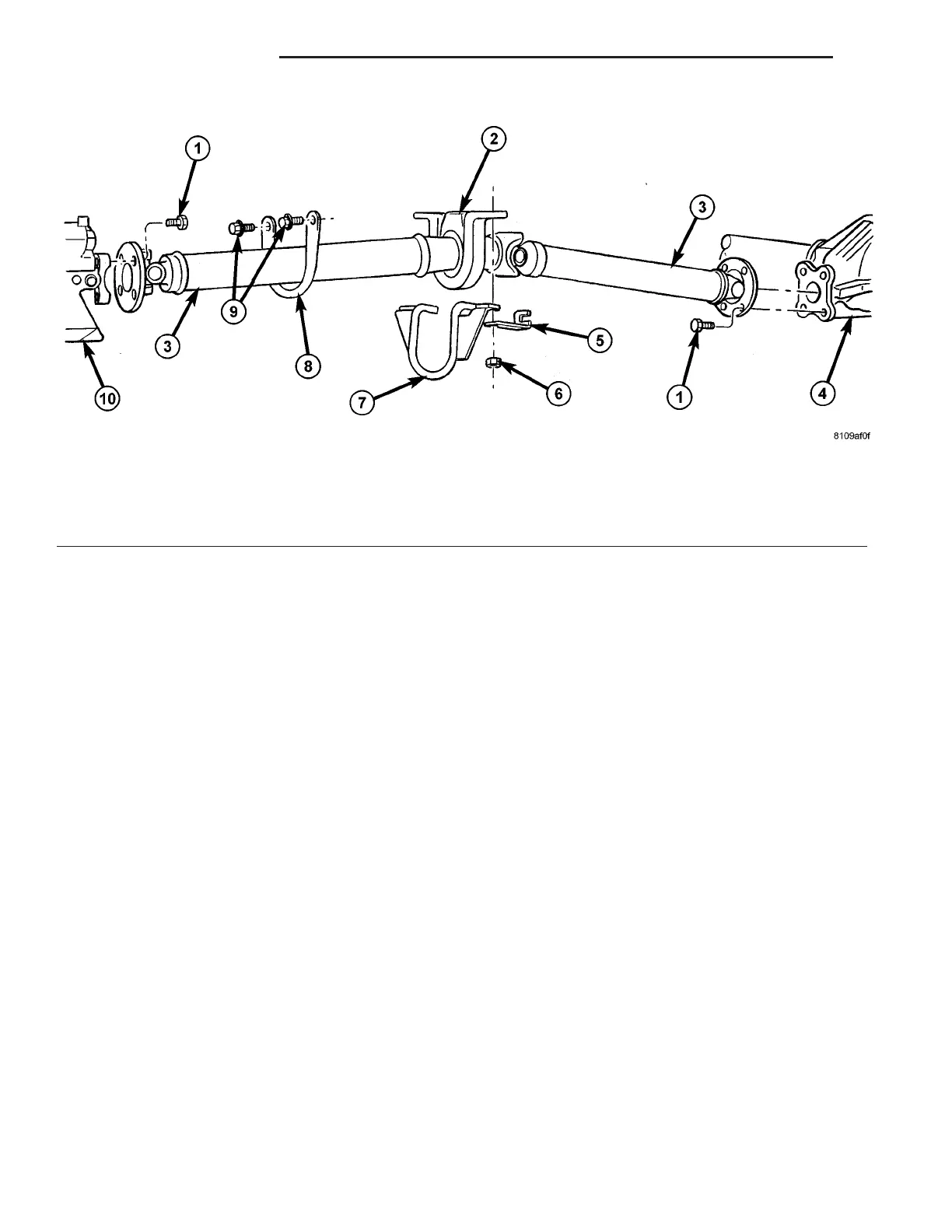

Fig. 8 2 PIECE PROPELLER SHAFT
1 - FLANGE BOLT 6 - NUT
2 - BEARING 7 - BRACKET
3 - PROPELLER SHAFT 8 - RETAINING BRACKET
4 - REAR AXLE 9 - COLLARED BOLT
5 - CABLE BRACKET 10 - TRANSMISSION
3-8 PROPELLERSHAFT VA
