Dodge Sprinter 2006 - Page 776

ASSEMBLY - DUAL REAR WHEEL
(1) In st all lower differential side gear (1) and shim
(Fig. 48).
(2) In st all first differential pinions gea rs (2) with
spherica l wash ers (3) a nd cross shaft (1) (Fig. 49).
(3) In st all u pper differen tia l side gear (1) an d shim
(2) (Fig. 50).
(4) In st all differ ential cover with location number s
(1) on differ ential case (2) a ligned (F ig. 51).

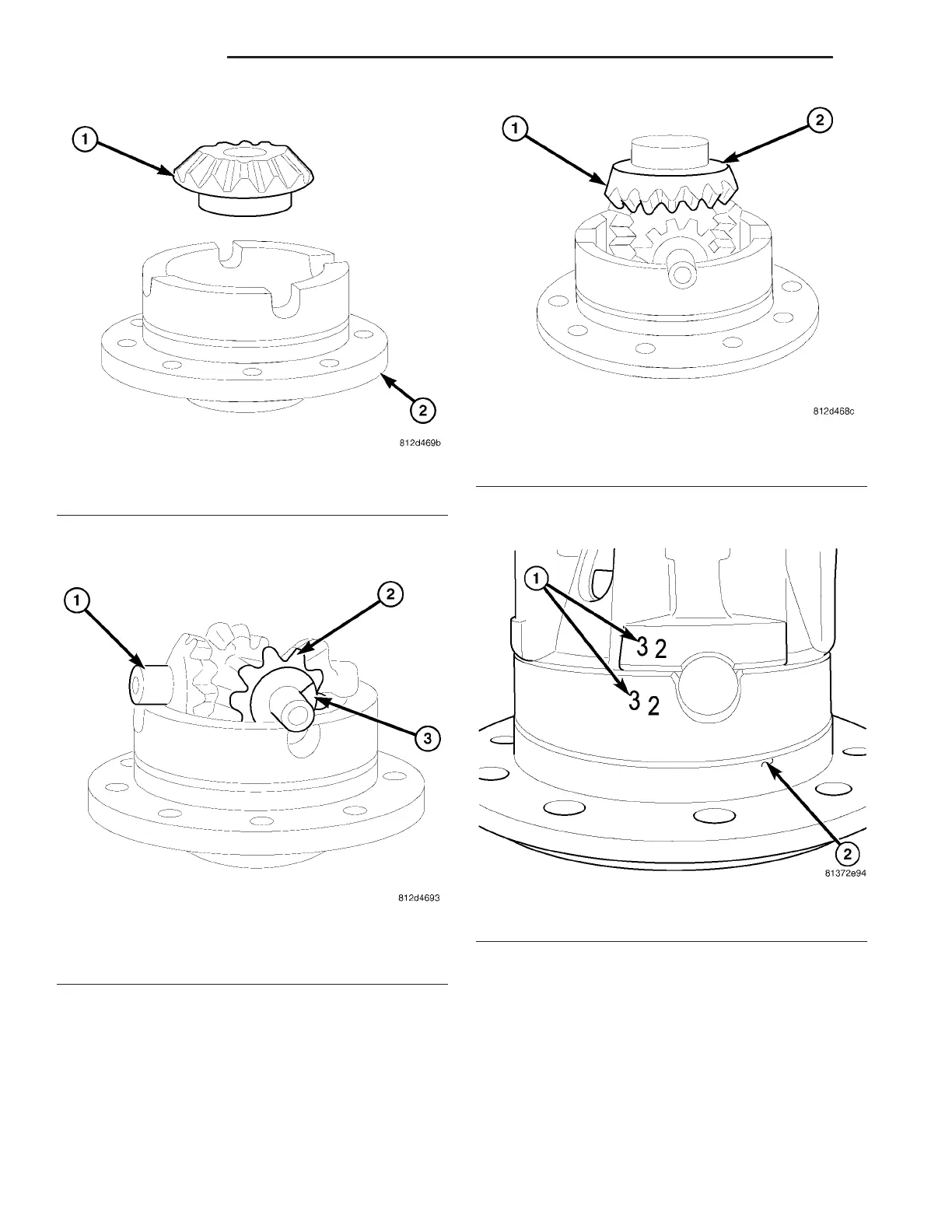

Fig. 48 LOWER SIDE GEAR
1 - SIDE GEAR
2 - DIFFERENTIAL CASE
Fig. 49 DIFFERENTIAL PINIONS
1 - CROSS SHAFT
2 - PINION GEAR
3 - WASHER
Fig. 50 UPPER SIDE GEAR
1 - SIDE GEAR
2 - SHIM
Fig. 51 LOCATION NUMBERS
1 - NUMBERS
2 - CASE
3-36 REARAXLE VA
