(4) In st all u pper differen tia l side gear (1) an d shim
(2) (Fig. 45).
(5) In st all differ ential cover with location number s
(1) on differ ential case (2) a ligned (F ig. 46).
(6) In st all differen tia l cover (2) bolt s (1) a nd
tighten to 45 N·m (33 ft. lbs.) (Fig. 47).
(7) Check tor que to rot ate the different ial gears
with Torque Tool 9744 a nd a t orque wren ch. Torqu e
sh ould be 20-40 N·m (15-30 ft. lbs.).
NOTE: Shims are available in 0.05 mm (0.002 in.)
increments, in thicknesses from 1.30 - 2.00 mm
(0.051 - 0.078 in.).

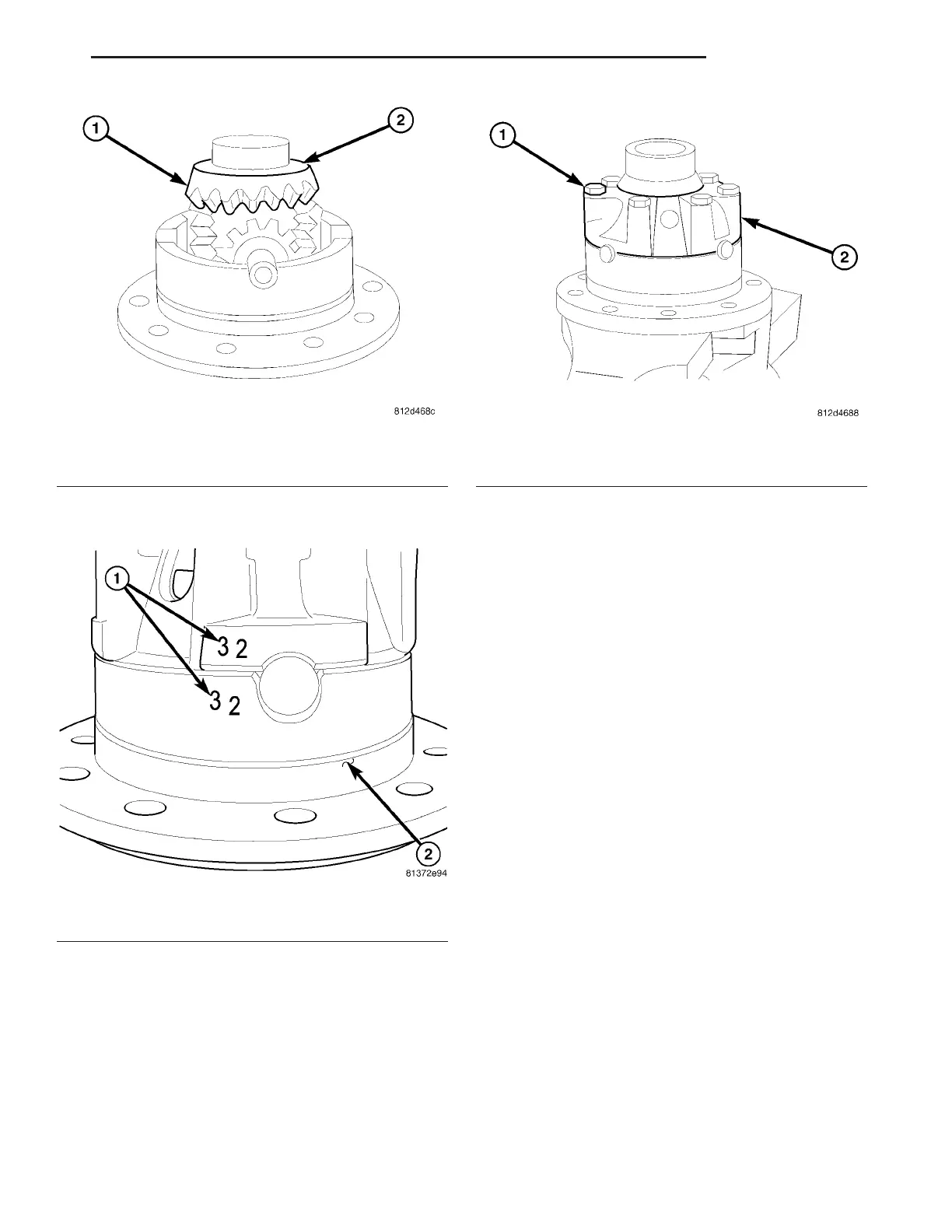

Fig. 45 UPPER SIDE GEAR
1 - SIDE GEAR
2 - SHIM
Fig. 46 LOCATION NUMBERS
1 - NUMBERS
2 - CASE
Fig. 47 DIFFERENTIAL COVER
1 - BOLTS
2 - COVER
VA REAR AXLE 3 - 35
