(4) Remove lower differen tia l side gear (1) and
sh im (Fig. 41).
ASSEM BLY
ASSEMBLY - SINGLE REAR WHEEL
(1) In st all lower differential side gear (1) and shim
(Fig. 42).
(2) In st all first differential pinions gea rs (1) with
spherica l wash ers and m ate sh aft (2) (Fig. 43).
(3) In st all second pinion gears (2) with sph erica l
washer s and mate sha ft (1) (Fig. 44).

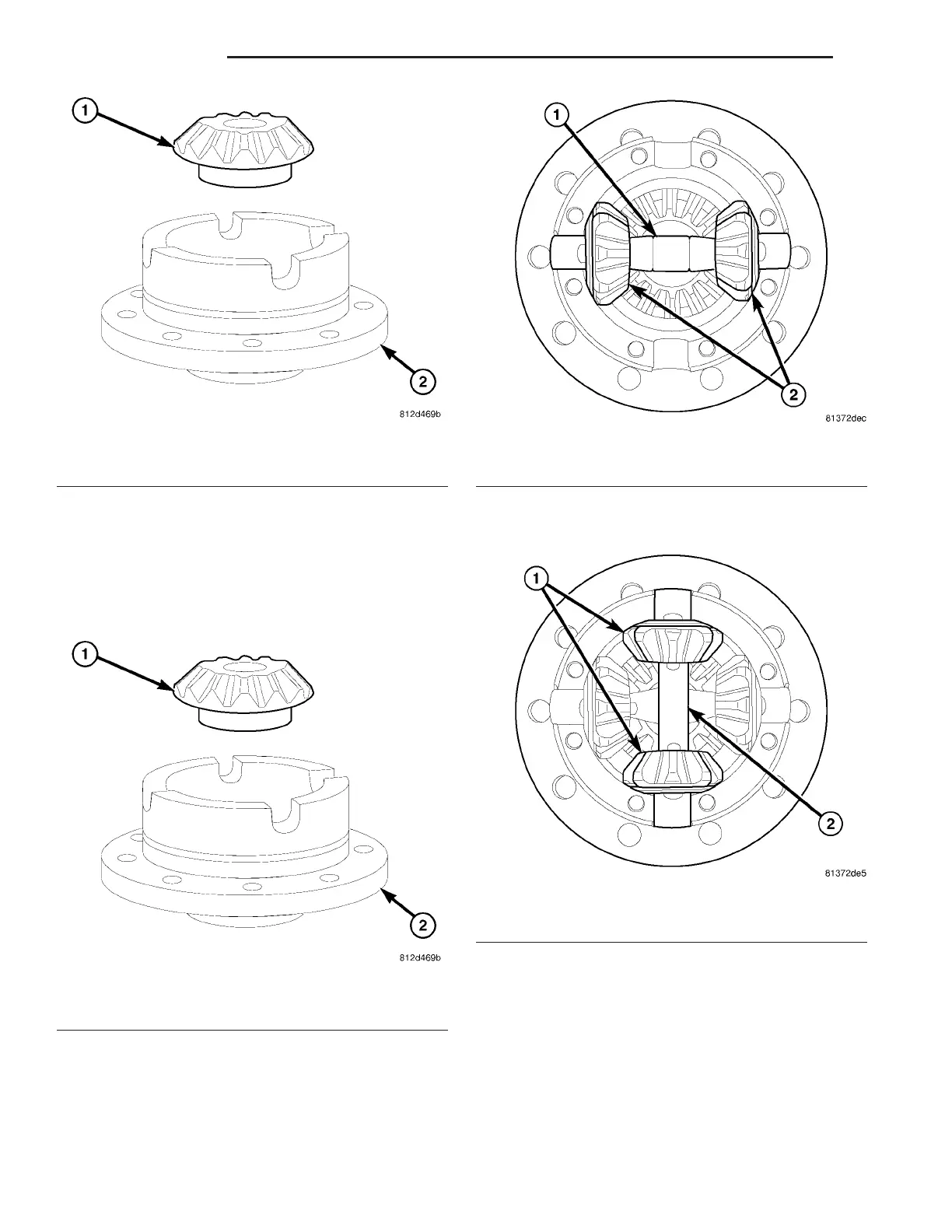

Fig. 41 LOWER SIDE GEAR
1 - SIDE GEAR
2 - DIFFERENTIAL CASE
Fig. 42 LOWER SIDE GEAR
1 - SIDE GEAR
2 - DIFFERENTIAL CASE
Fig. 43 PINION GEAR SET
1 - MATE SHAFT
2 - PINION GEARS
Fig. 44 PINION GEARS
1 - PINION GEARS
2 - MATE SHAFT
3-34 REARAXLE VA
