(6) Position wir e eyelets (5) an d (6) (Fig. 26) to
generat or studs.
(7) In st all + t erminal n uts (3) and (4) (Fig. 26).
Tighten + nut (4) to 18 N·m (159 in. lbs.). Tigh ten +
nut (3) to 5 N·m (44 in. lbs.).
(8) In st all tur bochar ger bra ce bolt (1) (Fig. 26) at
brace (2) (F ig. 26). Tighten bolt (1) to 20 N·m (15 ft .
lbs.).
(9) In st all bolt (2) (Fig. 27) at turbocharger brace
(1) (Fig. 27). Tighten bolt (2) t o 30 N·m (22 ft. lbs.).
(10) Lower vehicle.
(11) Connect nega tive battery cable.
(12) Check charging system for proper oper ation.

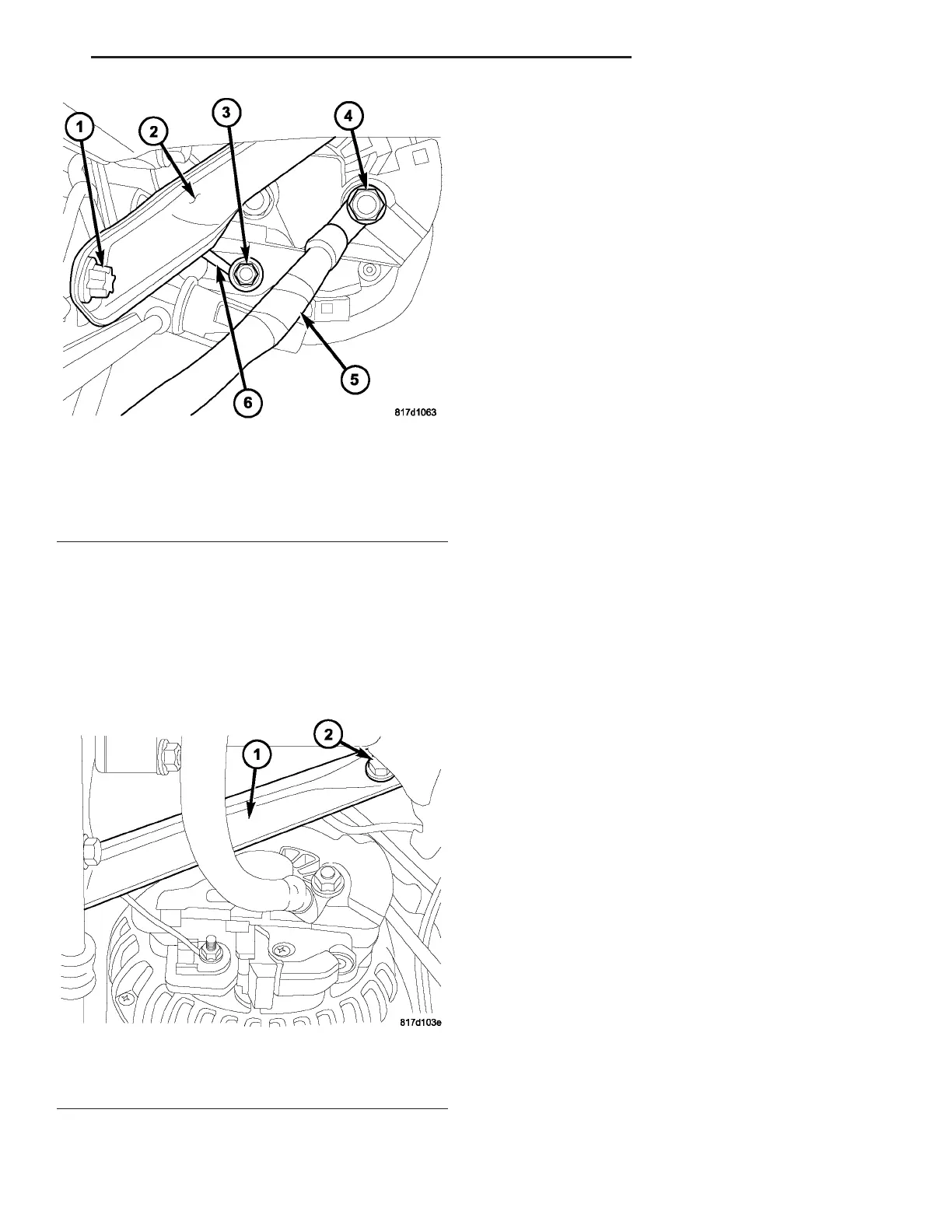

Fig. 26 REAR OF GENERATOR
1 - Brace Bolt
2 - Brace
3 - Nut
4 - Nut
5 - Wire
6 - Wire
Fig. 27 BRACE BOLT
1 - Turbocharger Brace
2 - Brace Bolt
VA CHARGING SYSTEM 8F - 27
