The Y-Drive Assembly
DSX™ System Service Manual 7-39

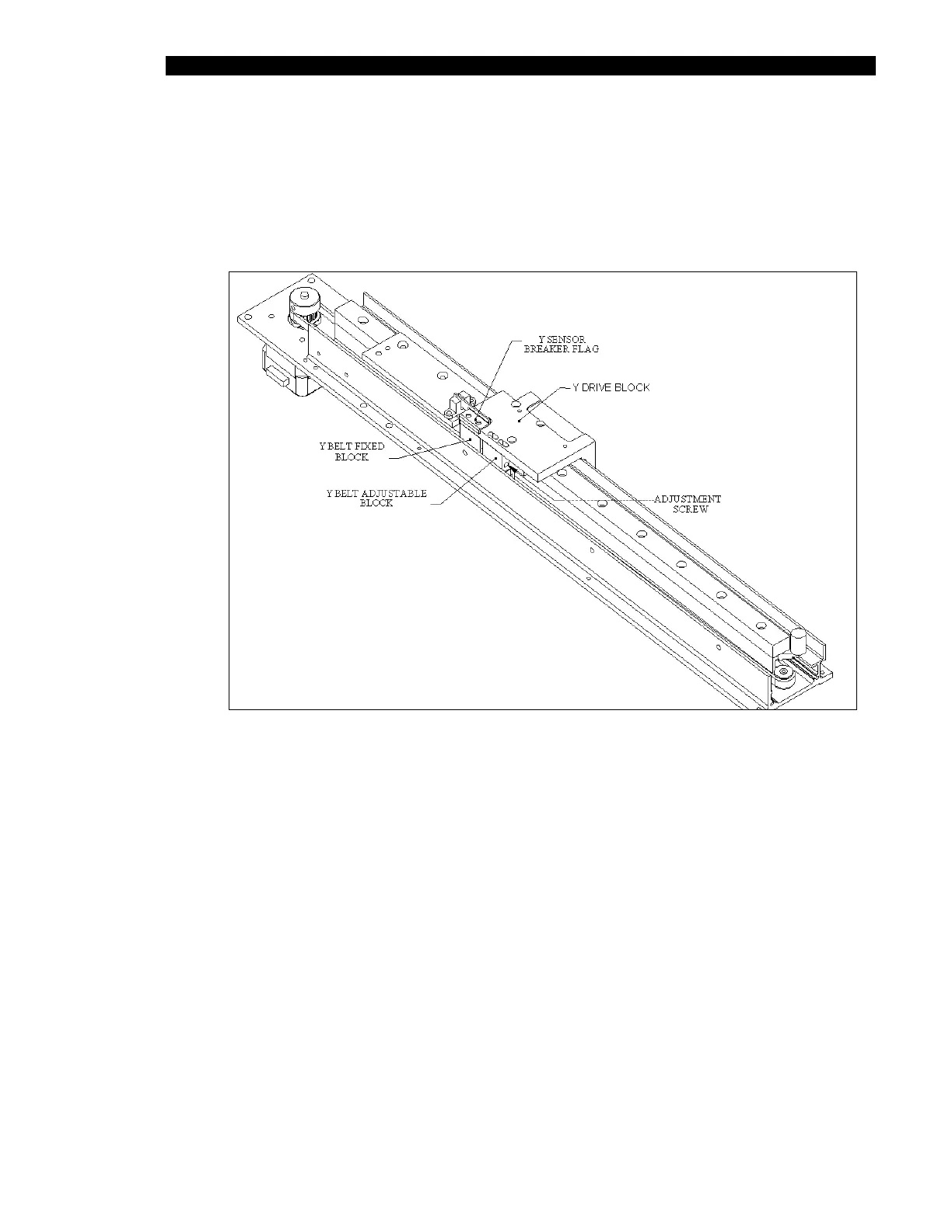

3 Place the Y sensor breaker flag (Part No. 204003600) on to the top of y-drive
block (Part No. 204003200) and mount to the fixed block with two, M3 X 12 cap
head screws. Use Loctite 222 to secure the screw. Mount the Y adjustable block
in the slotted holes using two M3 x 12 cap head screws and two M3 flat washers,
do not tighten. Insert one M3 X 30 button Posi head screw through the adjustable
belt block and into the fixed belt block.
Figure 7-46 Y-Drive Cable Bracket Closed
