The Y-Drive Assembly
7-38 DSX™ System Service Manual
2 Mount the Y-drive block (Part No. 204003200) to the linear bearing block using
four M3 x 6mm-cap head screws and Loctite 222 (Figure 7-45). Ensure the Y-
Drive block lip is flush with the linear slide as well as the side facing the motor.

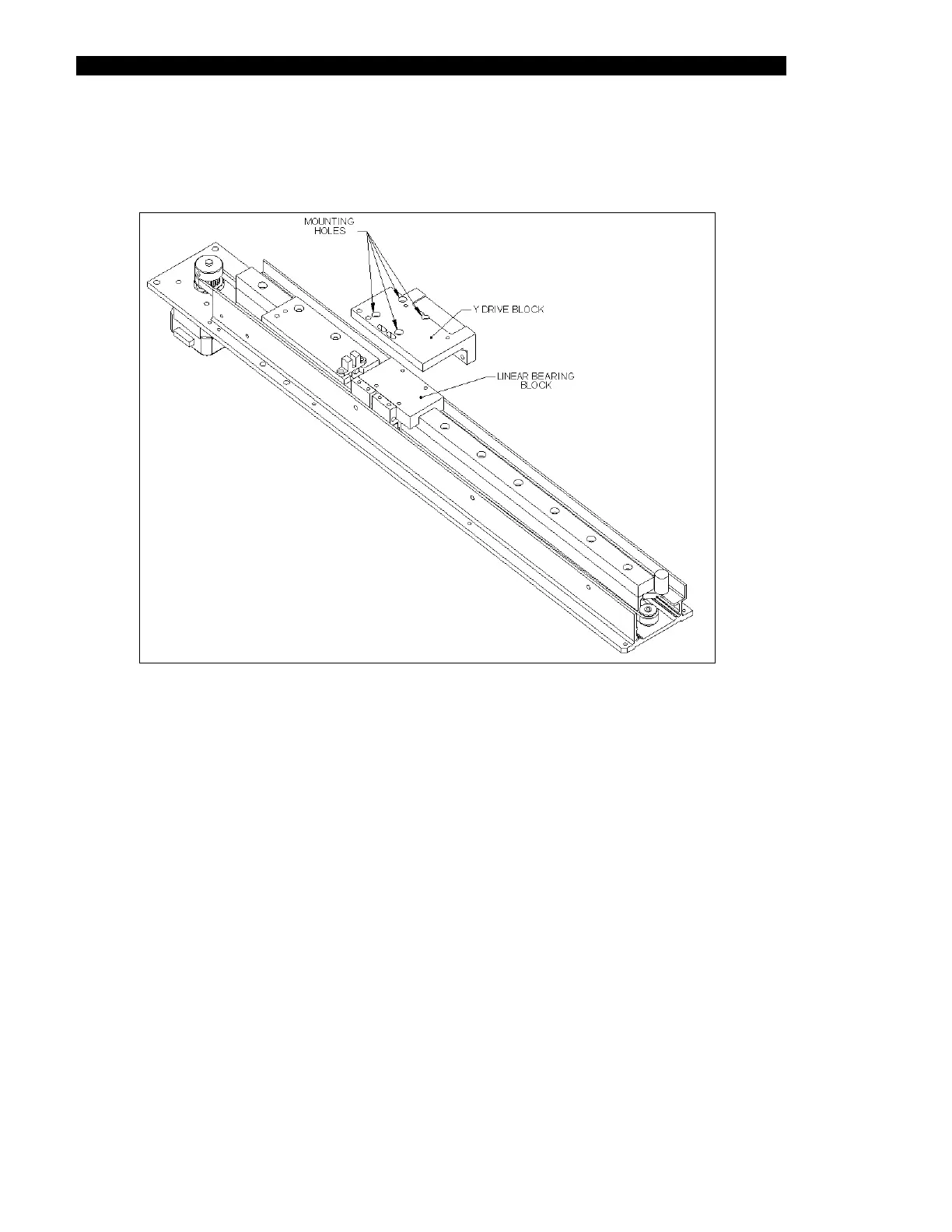

Figure 7-45 Y-Drive Block Design
