Repairing/Replacing Internal Components
9-24 DSX™ System Service Manual
To Remove the Locking Lever/Pivot and Spring
1 Remove the spring (Part No. 42000311) from the pin on the plate carrier and plate
carrier lever (Figure 9-26).

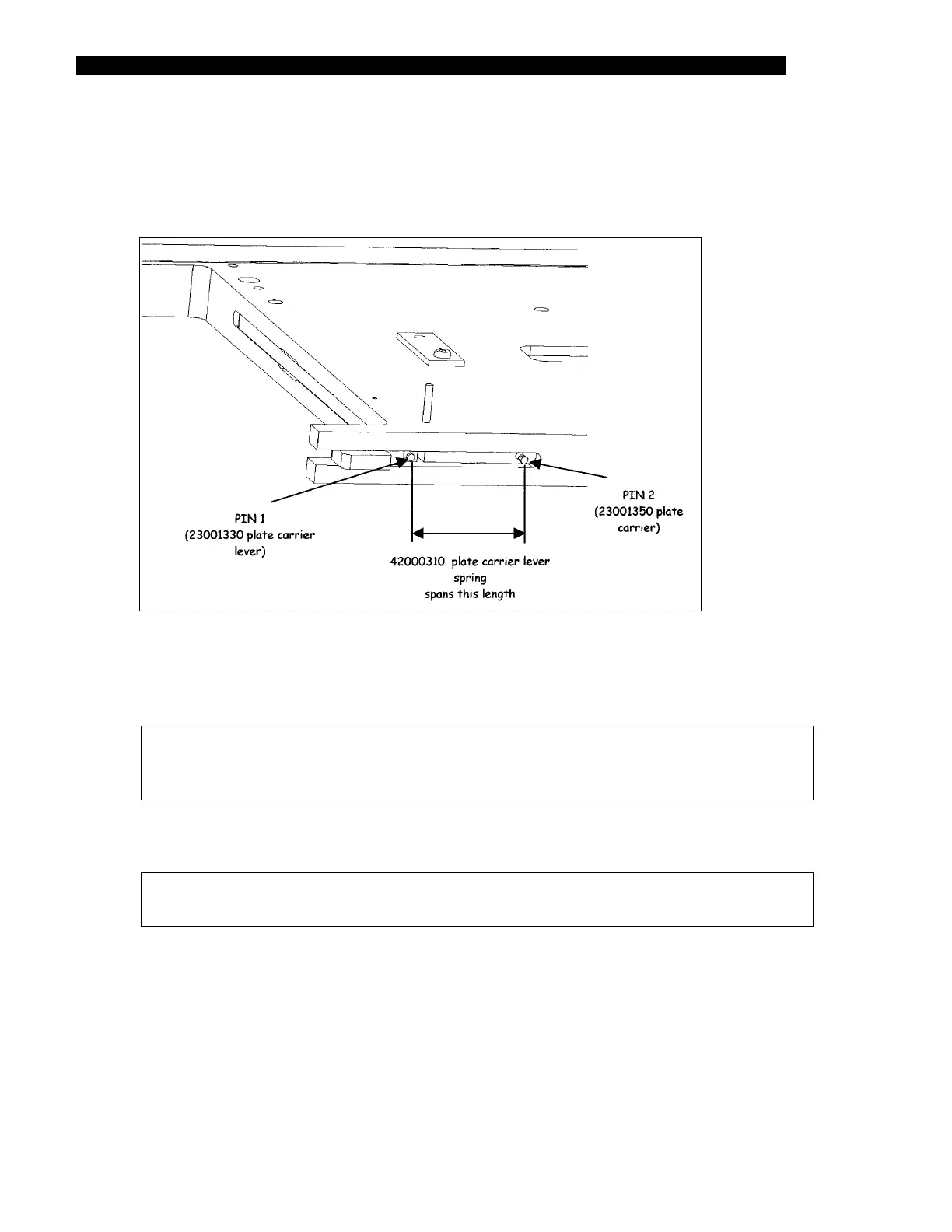

Figure 9-26 Lever/Spring Mechanism
2 Remove the Lever Pivot (Part No. 23001360) (Figure 9-25).
Note: When you reinstall the lever mechanism, stretch the spring far enough to
reach the pins on the plate carrier and the plate carrier lever, but do not
overstretch.
3 If it is necessary to remove the pivot and/or locking lever, use a small flat
screwdriver.
Note: When replacing the spring, take care that the spring is not over-
stretched.
.
