Removing External Components
11-16 DSX™ System Service Manual
4 Adjust the pins so that one pin is flush and the other is projecting 1/8”. Insert the
projecting pin of the door into the bezel. As you do this, deflect the spring with a
screwdriver so that it is pointing back and will enter the spring recess in the bezel
shown in Figure 11-9. Do this with both springs. Insert the other end of the door.
Engage the pin by pressing with a screwdriver. Use a miniature friction lock quick-
grip clamp to press in the pins into the bezel.

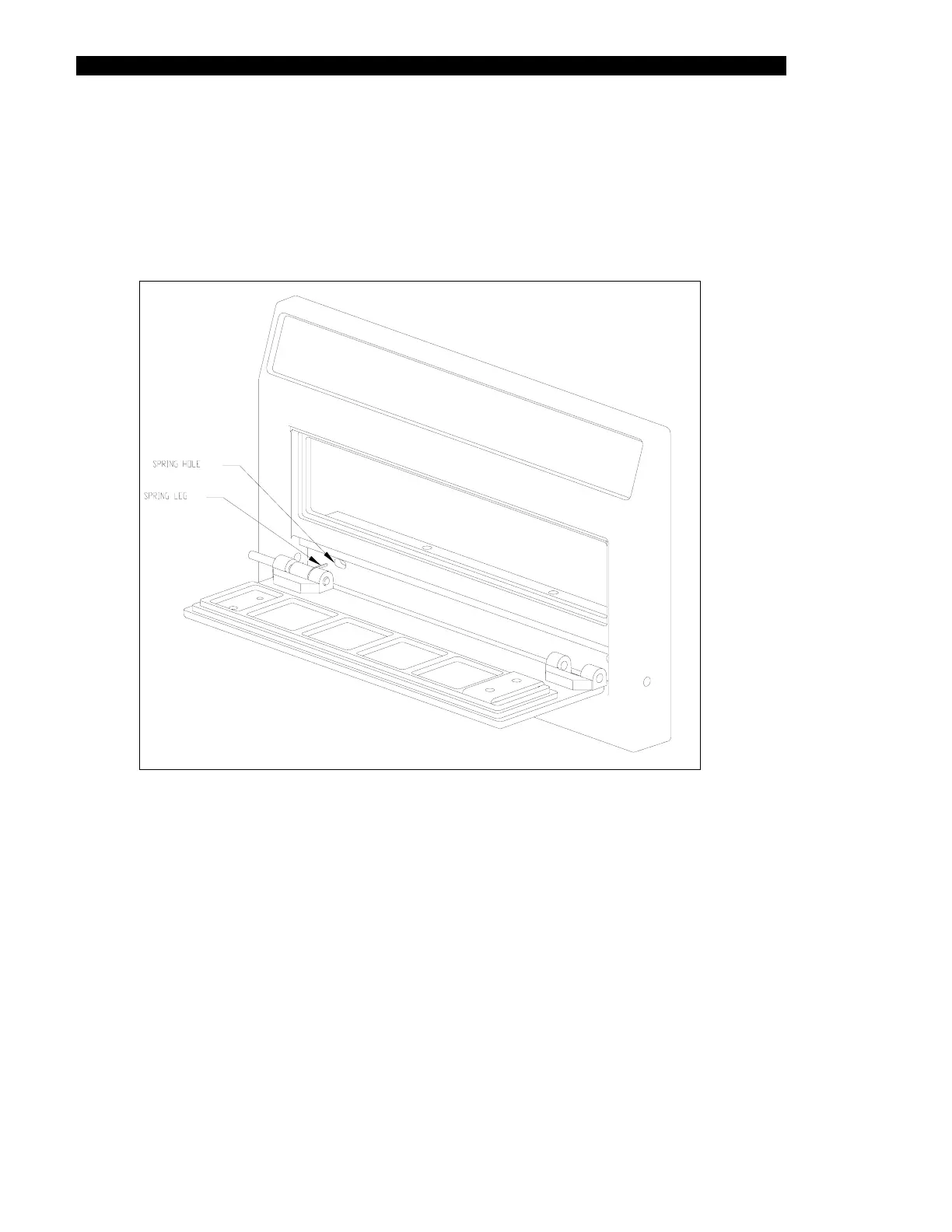

Figure 11-9 Position of Spring Hole and Leg
If needed, use a 2mm Allen wrench to align the pin with bezel pinhole until the pin
is started. Test the door by opening it and then letting go 5 times. The door should
shut by itself. If it does not shut properly, use a 3mm Allen wrench to push out the
pins and begin the installation procedure again.
