Repairing/Replacing Internal Components
11-48 DSX™ System Service Manual
11 Tighten the two screws on the top optics. Tighten the screws on the bottom
optics. Remove the jigs and tighten the remaining screws.

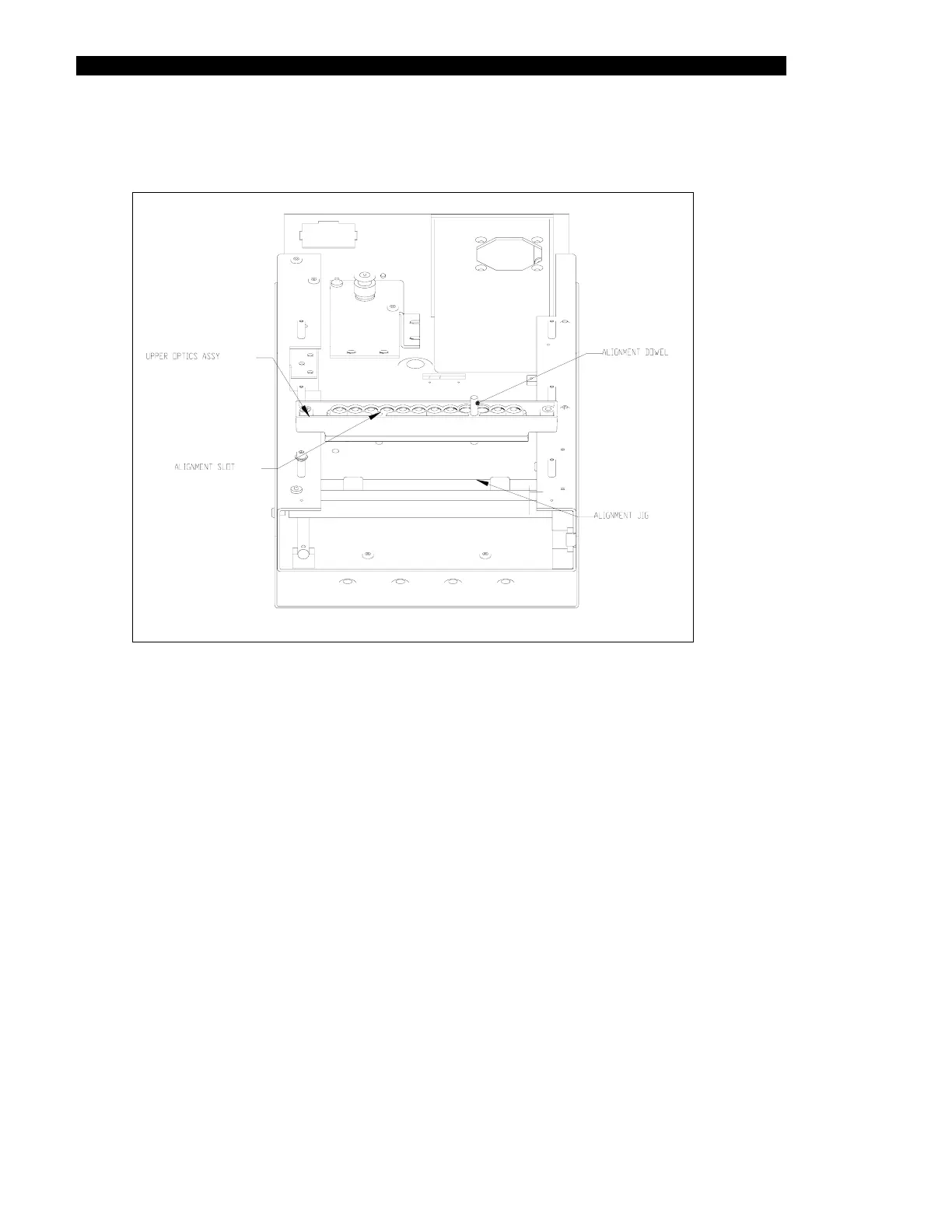

Figure 11-44 Alignment of Upper Optic Assembly
