Replacing Components - Y-Drive Assembly
DSX™ System Service Manual 13-33
To Replace the Belt:
1 Install the 282.5 mm Timing Belt (Part No. 320000600) into the belt brackets with
two teeth exposed and three wrapped around and through the slot on the bracket
as shown in Figure 13-25.

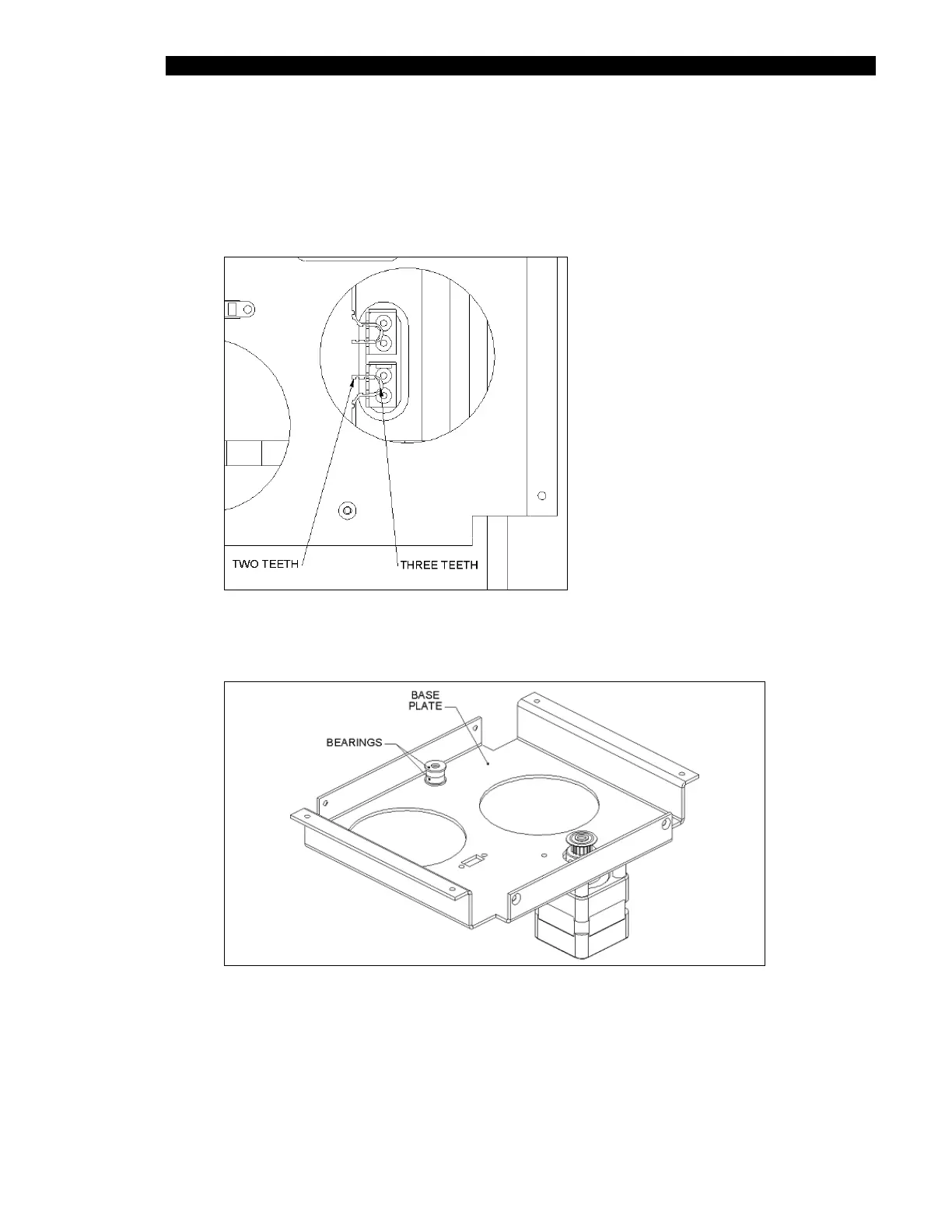

Figure 13-25 Y-Drive Belt Bracket
2 Loop belt around motor pulley and idler wheel (Figure 13-26).
Figure 13-26 Bearing and Motor
3 Loosen the screws on the adjustable bracket. Position Y Belt Tensioning Jig
(WMFIX011) as shown with Y-Drive fully extended and the jig flush against the
rear support bar and slide block.
