GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-43
Section 3-10
Available Probes
3-10-1 Supported probes
The LOGIQ S7 Expert/Pro supports the following types of probes:
• Sector Phased Array
• Convex Array
• Microconvex Array
•Linear Array
• Matrix Array
• Bi-plane Microconvex Arrays
• TEE Sector Array - LS7 R2 only
• Single CW (Pencil) Probes
• Volume Probes (4D)
NOTE: Not all probes described in this document may be available or cleared for sale in all markets.
3-10-1-1 Probe Naming Conventions
3-10-1-2 Probe Description

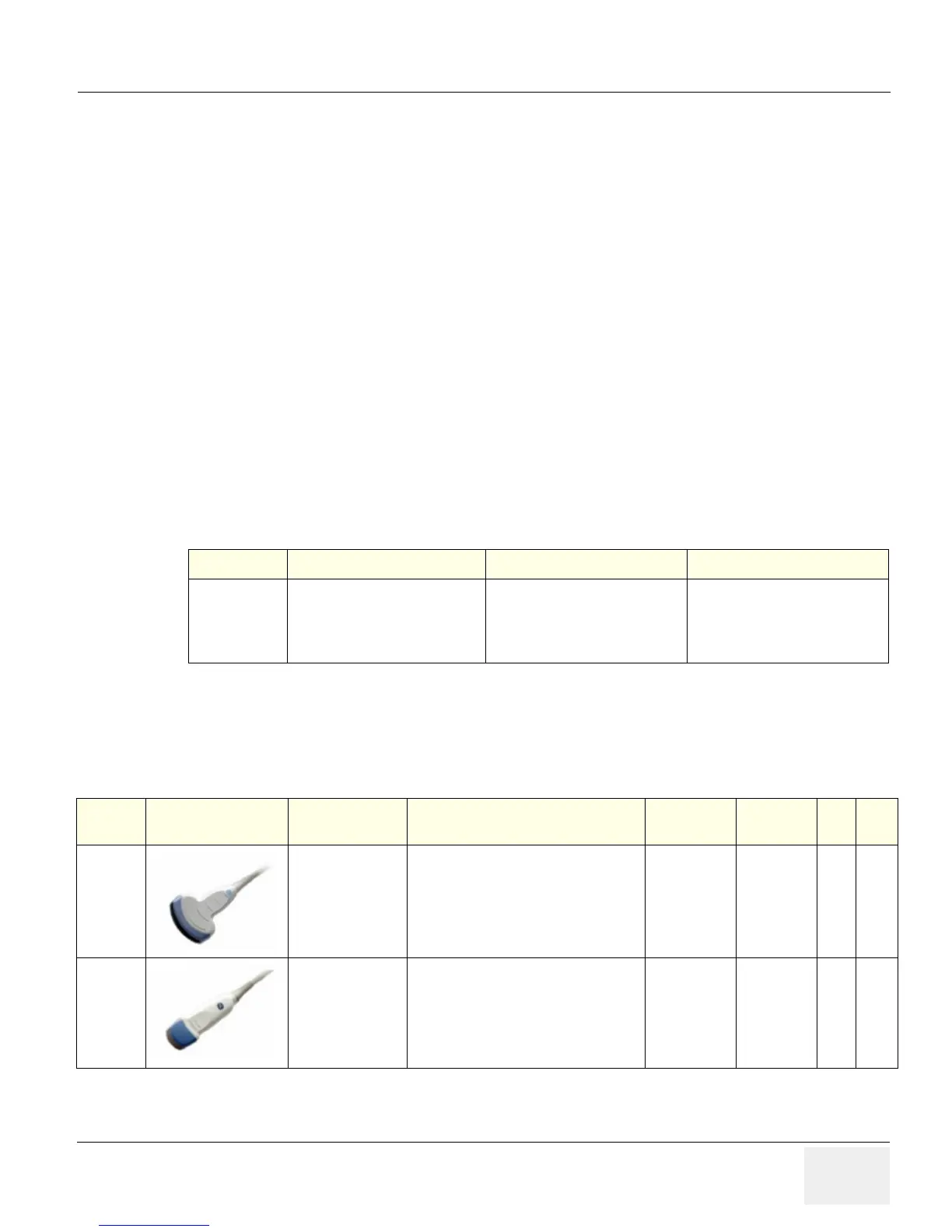

Table 3-19 Probe Description
Table 3-18 Probe Naming Convention
Type Application Frequency Connector Type
C=Convex
L=Linear
M=Matrix
S=Sector
AB=Abdominal
IC=Intracavitary
NA=Neonatal
SP=Small Parts
“1-5” D=DLP
Part
Name
Illustration Application Feature
Part
Number
Probe
Type
Qty FRU
C1-5-D
Abdomen,
Vascular, OB/GYN,
Urology
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Contrast, Elastography,
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced 3D, Biopsy
5304539 Convex
11
3CRF-D Abdomen, OB/
GYN, Urology
B, CHI, CF, PDI, M, PW, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, Biopsy
5397669 Convex
11
