GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-102 Section 8-22 - Replacement of Battery (R2.x.x or later)
Section 8-22
Replacement of Battery (R2.x.x or later)
8-22-1 Manpower
One person, 1 hour.
NOTE: LS7 BUM 5492864 provides the information, "Refreshing the battery" in Chapter 3 Preparing to System
for Use. The recommended procedure can be executed by user for maintaing battery life.
8-22-2 Tools
Phillips screwdriver.
8-22-3 Removal Procedure

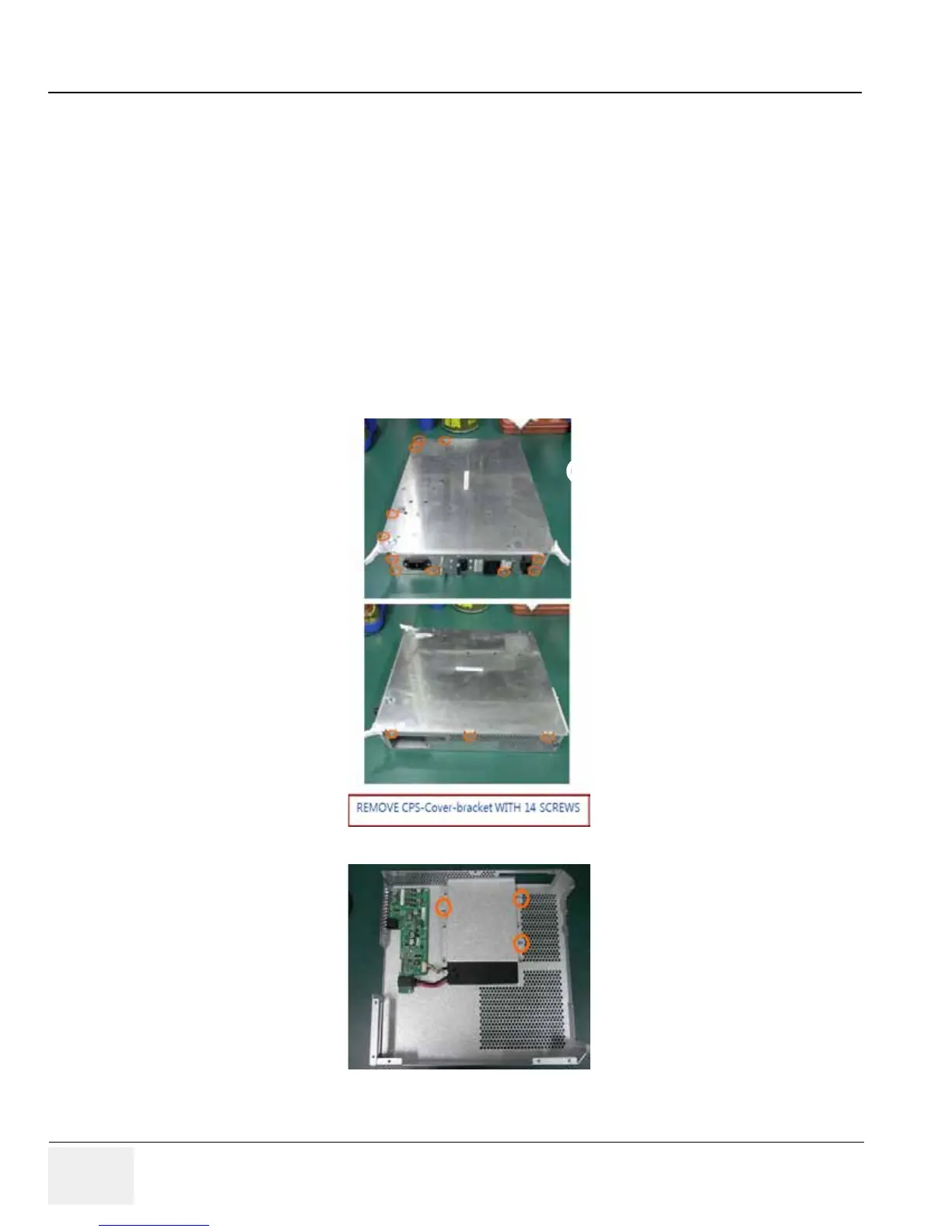

1.) Open CPS-Cover-bracket by removing screw.
2.) Detach “BATTERY_CAP_BRKT” by removing 3 screws
To Next Page
