GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-122 Section 8-29 - Replacement of the Peripherals
3.) Remove cables from printer.

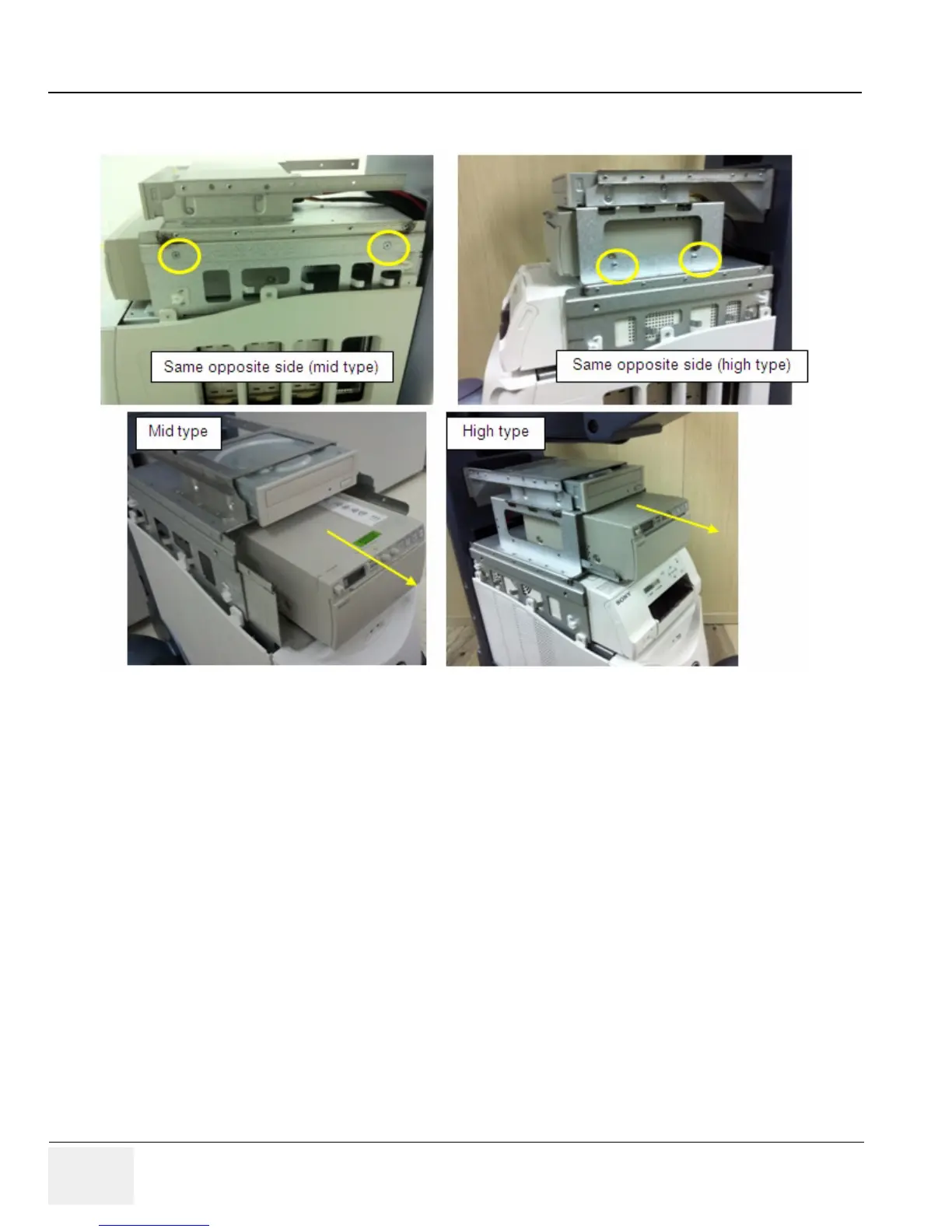

4.) Unscrew four screws and pull put the B/W printer.
Figure 8-138 Remove BW printer
8-29-1-1-4 Installation Procedure
1.) Parts to be installed in reverse order on removal.
8-29-1-1-5 Functional Check
Test 1: Print an image by pressing the button P1 on the operator panel. (P1 key should be
configured correctly)
Verify1: - Verify that image can be printed.
Verify2: - Verify that printed image has no distortion as compared the image on screen.
