GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 4 - Functional Checks 4-7

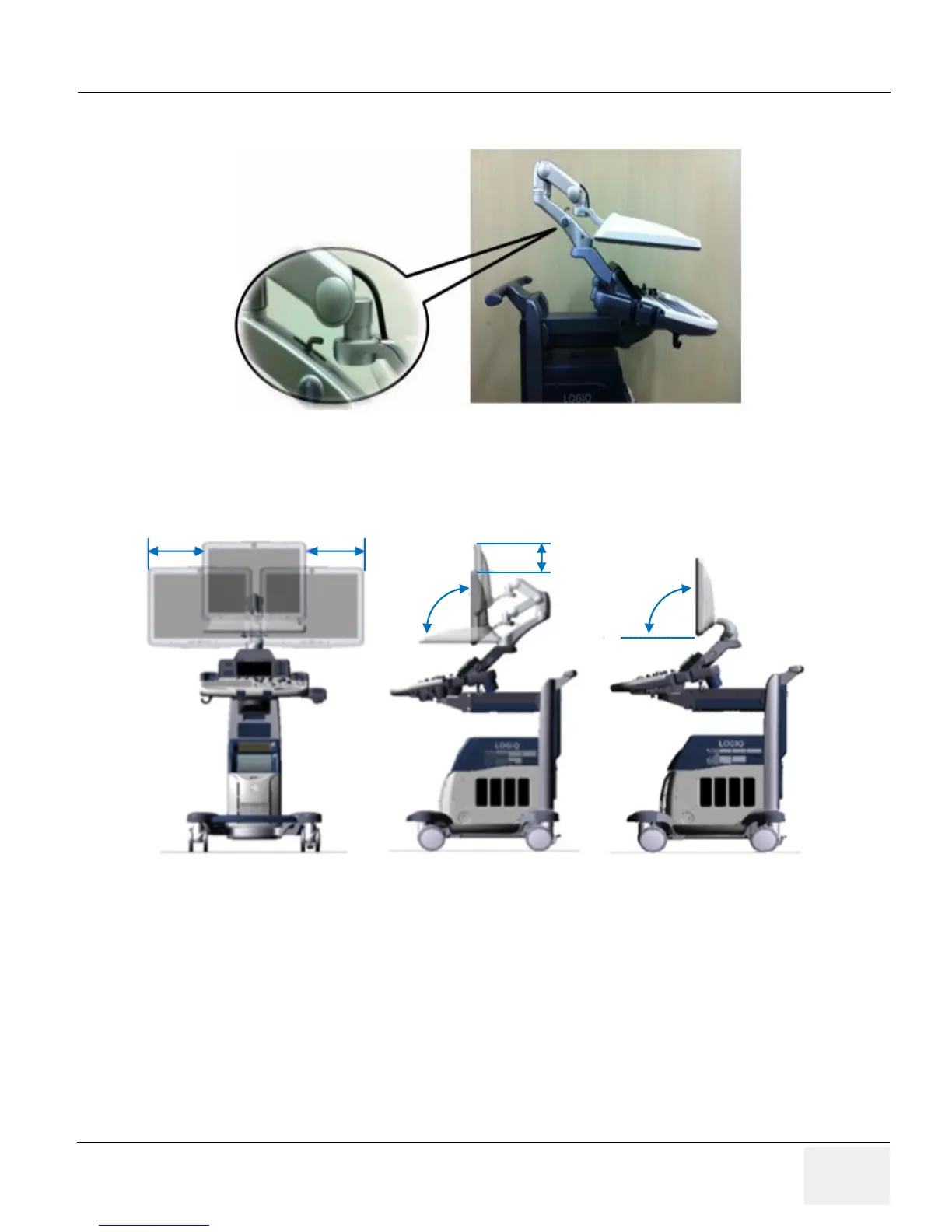

4-3-2-2 LCD ARM
1.) Loosen LCD Arm LOCK (see: Figure 4-5)
.
Figure 4-5 LCD ARM Lock
2.) Verify LCD Monitor can move up/down (vertically) and left/right (horizontally).
NOTE: LCD Monitor can move approximately 150mm vertically and 250mm horizontally (see: Figure 4-6).
Figure 4-6 LCD Movement
a, b : LOGIQ S7 Expert
c : LOGIQ S7 Pro
3.) Engage LCD Arm LOCK.
4.) Align LCD Arm along center line of the system.
5.) Verify LCD Panel is locked to position and LCD ARM does not move.
250mm
250mm
90degree
150mm
90degree
ab
c
