8-66 Section 8-15 - Replacement of Key Caps (by special native language keys)
8-15-4 Replacement Procedure
1.) Remove ‘1’ Key, ‘Left Shift’ Key, ‘F5’ Key, ‘6’ Key, ‘7’ Key, ‘H’ Key, ‘J’ Key, ‘N’ Key, ‘Back space.’
Key, ‘Right Shift’ Key and ‘Pg Up’ Key by using fingertips. Refer to below Figure 8-60.

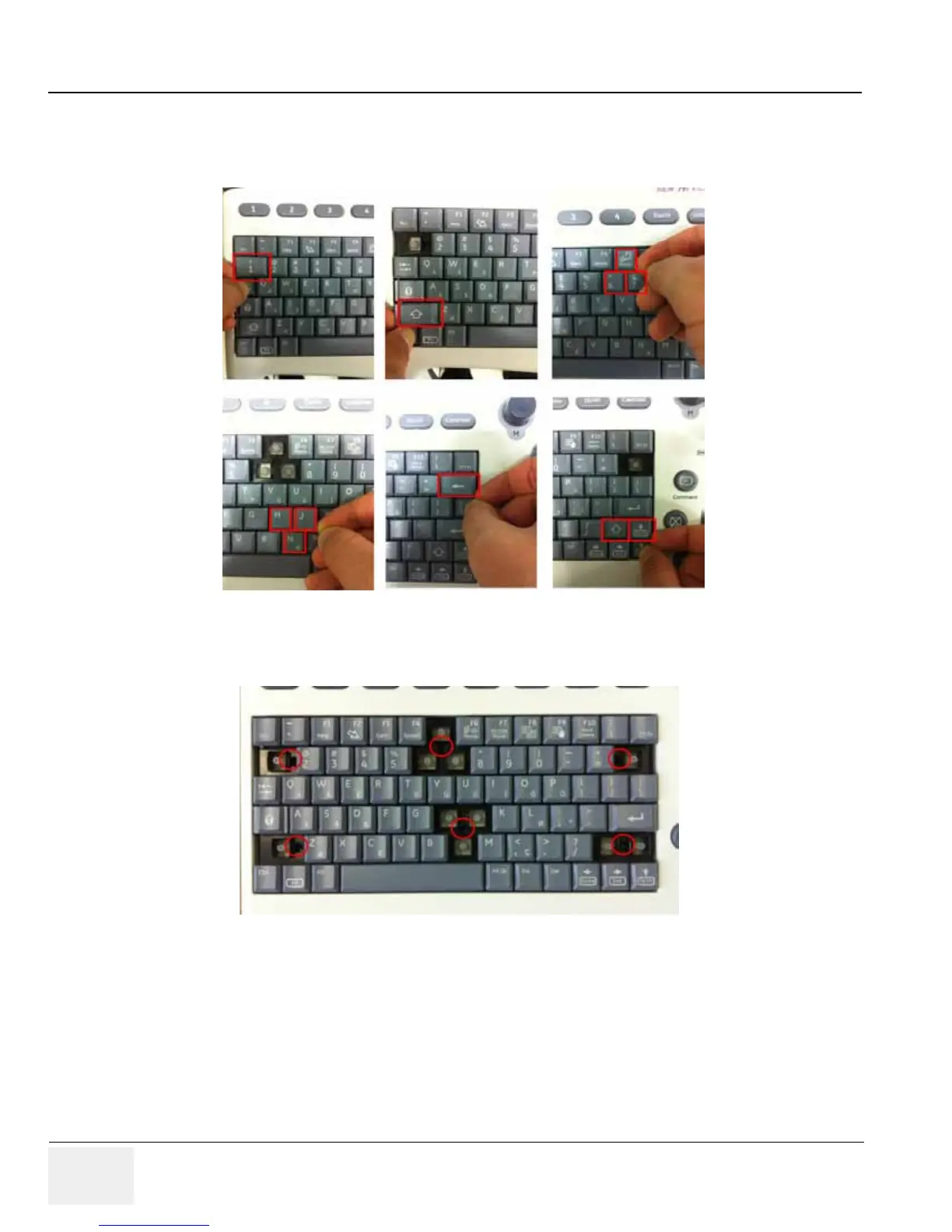

Figure 8-60 Remove key : ‘1’, ‘Left Shift’, ‘F5’, ‘6’, ‘7’, ‘H’, ‘J’, ‘N’, ‘Back space’, ‘Right Shift’, ‘Pg Up’
2.) Loosen the 6 screws using the plus(+) screwdriver. Refer to below Figure 8-61f.
Figure 8-61 Loosen the 6 screws
