GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-81
8-16-7-1 Removal Procedure - Separating CBP (Backplane)
1.) Disconnect CIS Connector. Refer to Section 8-18.
2.) Disconnect Fan Connector.
3.) Remove 8 Screws.

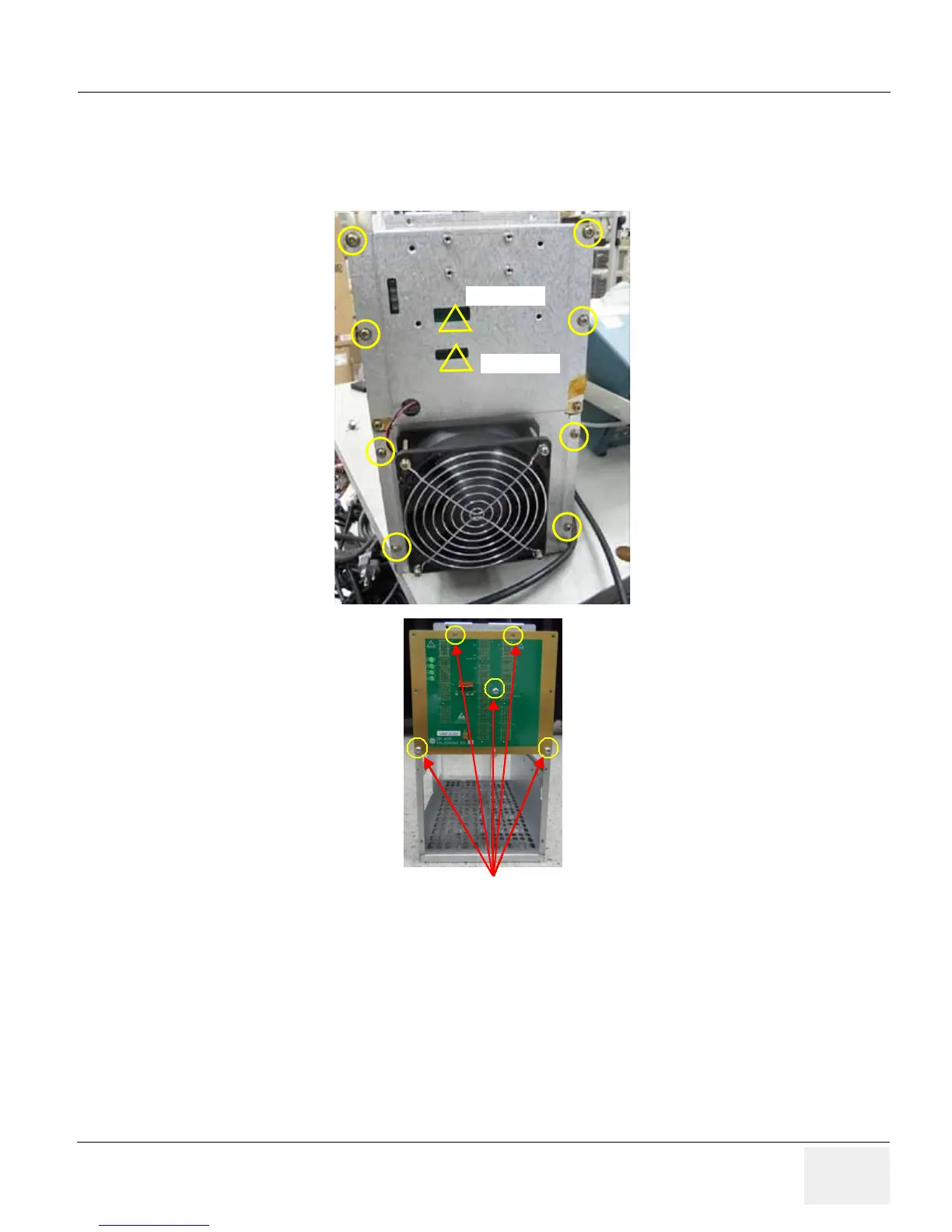

Figure 8-83 Separating CBP
4.) Remove 5 screws.
5.) Gently remove CBP (Common Back Plane).
8-16-8 Installation Procedure - CBP
1.) Parts to be installed in reverse order of removal.
8-16-9 Functional Check
Refer to Section 4-4 for Functional Diag Test List.
