7-6 Section 7-3 - Check Points Voltages
7-3-2 LED for Power Status
LEDs near the front cooling fan can provide information pertaining to the DC power distribution status.
1.) Remove Front Cover (no tools required)

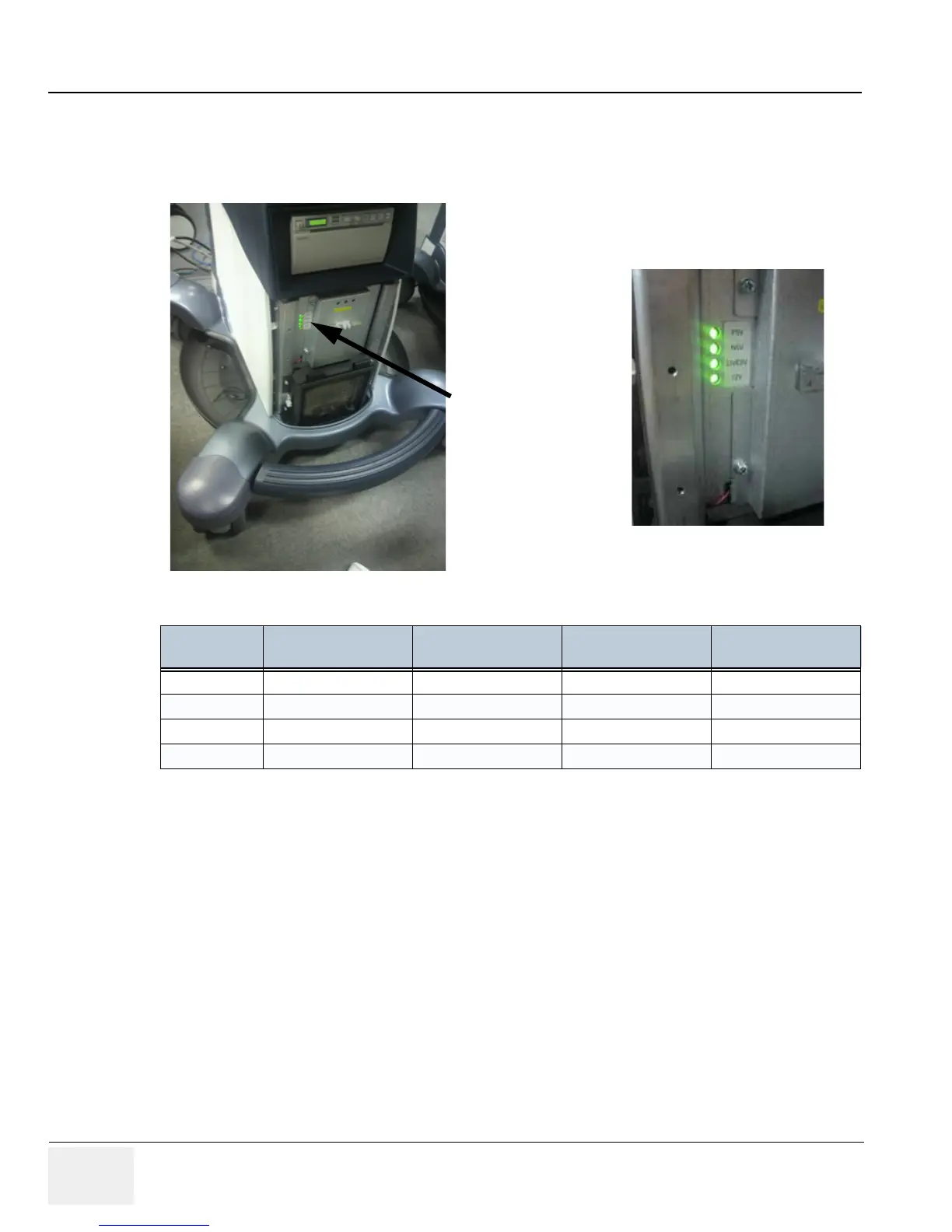

Figure 7-7 LED for Power Status
LED
Breaker OFF
System OFF
Breaker ON
System OFF
Breaker ON
System ON
Breaker ON
System Sleep
P5V
OFF OFF ON OFF
N5V
OFF OFF ON OFF
LIVE5V
OFFONONON
12V
OFF OFF ON OFF
Voltage Status
LED
