GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 4 - Functional Checks 4-10
4-3-2-5 Swivel/Brake Lock Caster
NOTE: This procedure applies to casters other than RIGHT REAR Caster.

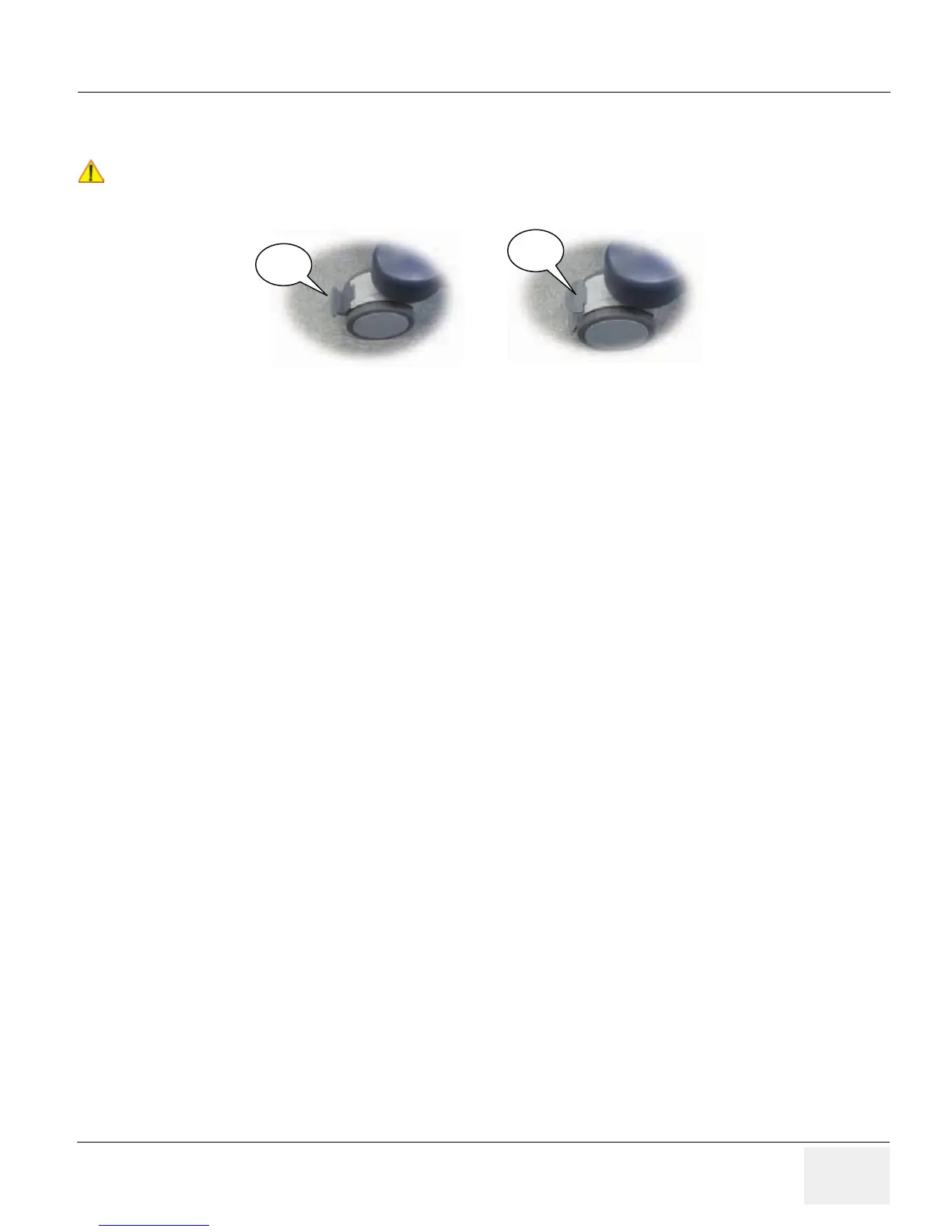

Figure 4-9 Total Lock Casters
1.) Press ‘a’. (see: Figure 4-9)
2.) Rotate wheel until it locks (several locations where caster engages).
3.) Verify Swivel Lock engages and Brake is ON.
4.) Press ‘b’.(see: Figure 4-9).
5.) Verify wheel is free to move.
CAUTION
!! CAUTION:
System weighs approximately 90kg. Pay attention for system stability when working with the
casters.
b
a
