8-114 Section 8-26 - Replacement of Peripheral Cable Assy
3.) Pull up the DVD cables from the gap.

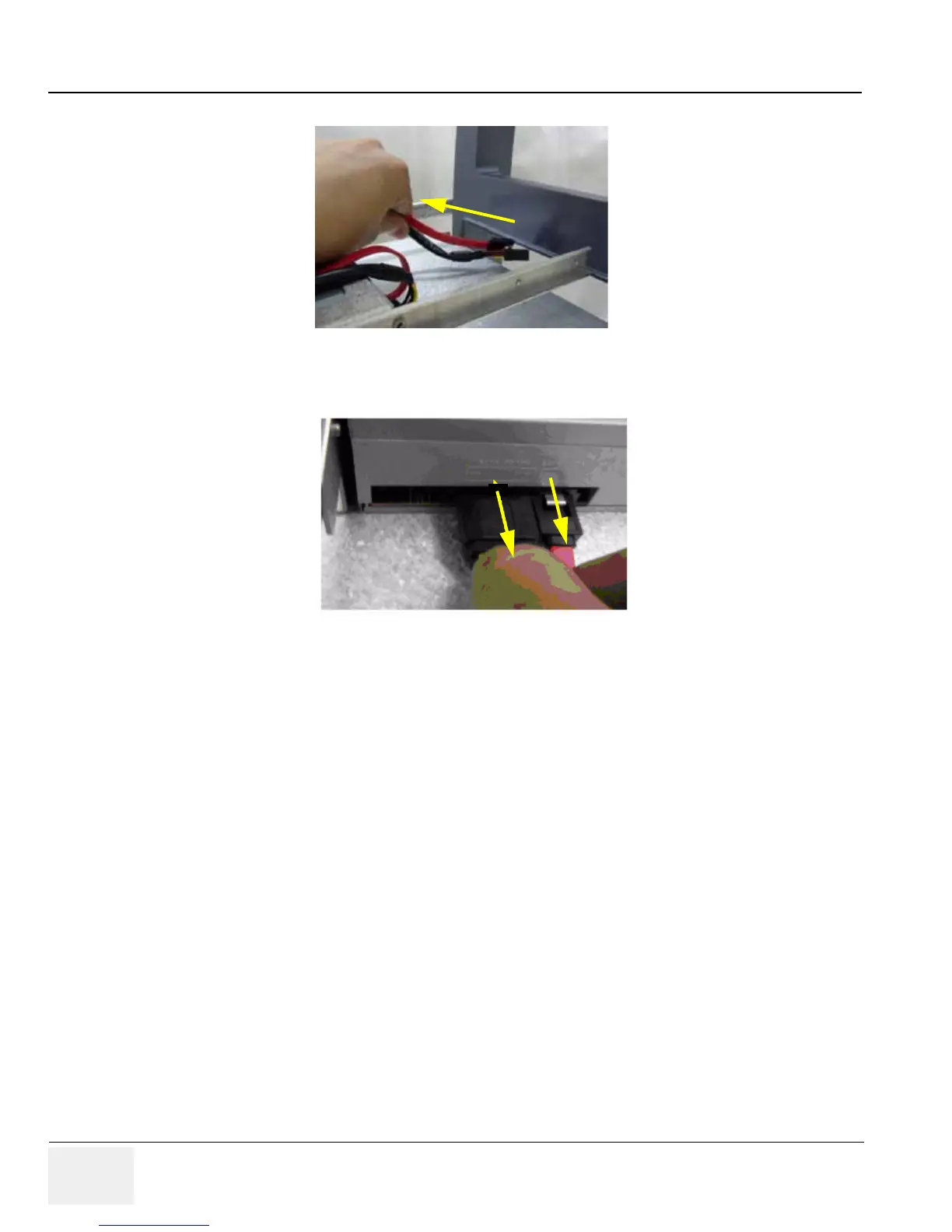

Figure 8-125 Pull up DVD cables
4.) Remove the DVD cable connectors from the DVD drive.
Figure 8-126 Remove DVD cable connectors from DVD drive
8-26-1-4 Installation Procedure
1.) Parts to be installed in reverse order of removal.
8-26-1-5 Functional Check
Exit to Windows, and verify DVD Drive is recognized.
Insert CD or DVD with contents and verify contents of the media is accessible.
