9-4 Section 9-4 - Plastics Covers (Front/Sides/Rear)
Section 9-4
Plastics Covers (Front/Sides/Rear)

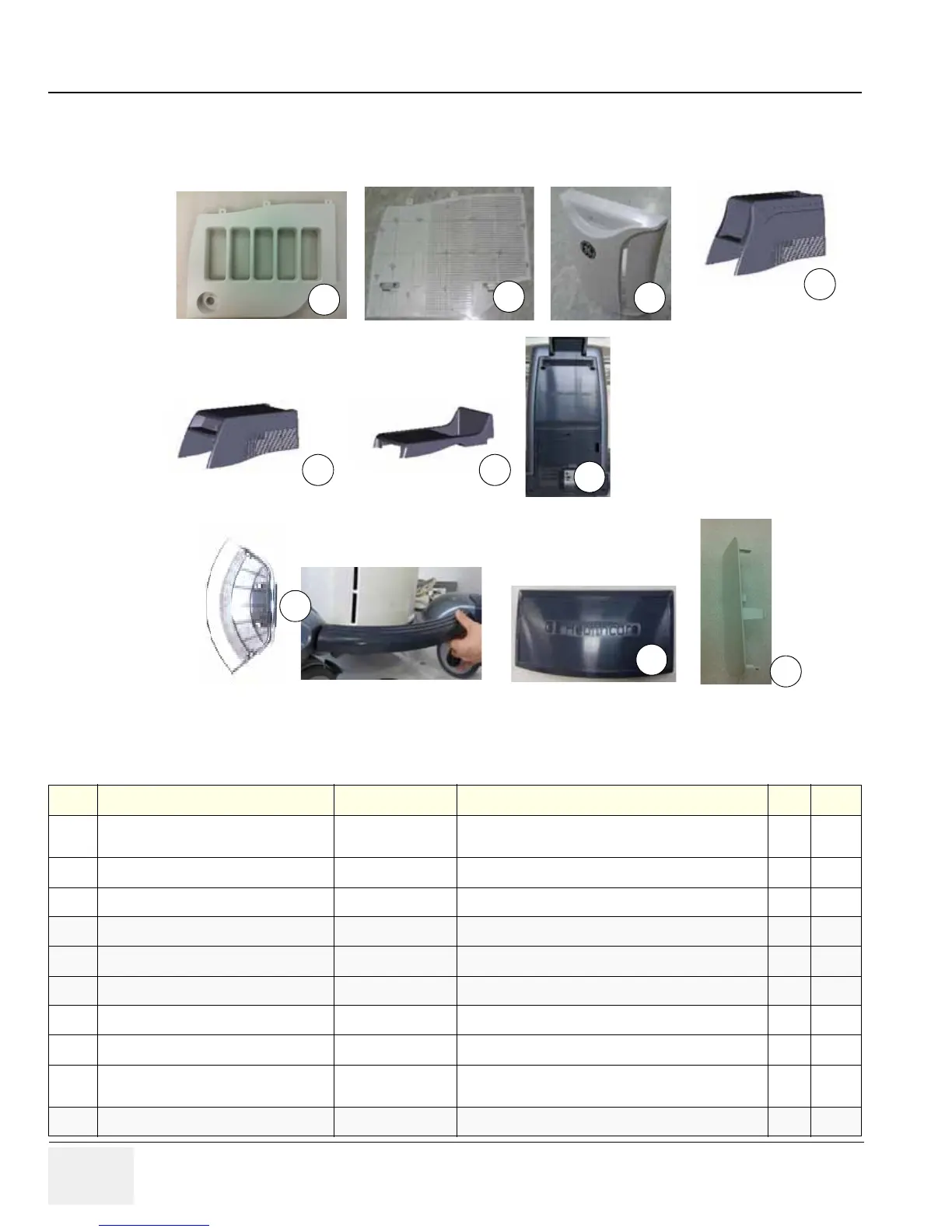

Figure 9-2 Plastics Covers (Front/Side/Rear)
Table 9-3 Plastic Covers
Item Part Name Part Number Description Qty FRU
101
Side Cover R Assy
5412187
Plastics, DLP Probe Connector LOGIQ™ S7 Expert/
Pro
1 1
102
Side Cover L Assy
5405169 Plastic, w/ ‘cap’ 1 1
103
Front Cover Assy Polaris
5405167 Plastic (Snap On) 1 1
104
Top Cover - High Cabinet
5412186 LOGIQ silk for LOGIQ™ S7 Expert/Pro 1 1
105
Top Cover - Mid Cabinet
5412184 LOGIQ silk for LOGIQ™ S7 Expert/Pro 1 1
106
Top Cover - Low Cabinet
5405176 LOW CABINET Cover 1 1
107
Rear Cover
5405170 Assy Plastic 1 1
108
Side Tray & Footresst Cover
5408075 2 side trays and Foot rest plastics in one kit 1 1
109
Dummy Cover
5408076
Plastics, BW PRT Bezel, Dummy for Mid and High
Cabinets
-1
110
DLP Dummy Cover
5432813 DLP Dummy Cover 1 1
101
102
103
104
105
106
107
109
108
110
