Chapter 4 - Functional Checks 4-24
4-3-7-3 Color Flow-Mode
1.) Press CF Mode button.
2.) Increase CF Gain until noise floor shows up.
3.) Verify no vertical “streaks” of color that significantly contrasts the surrounding color.

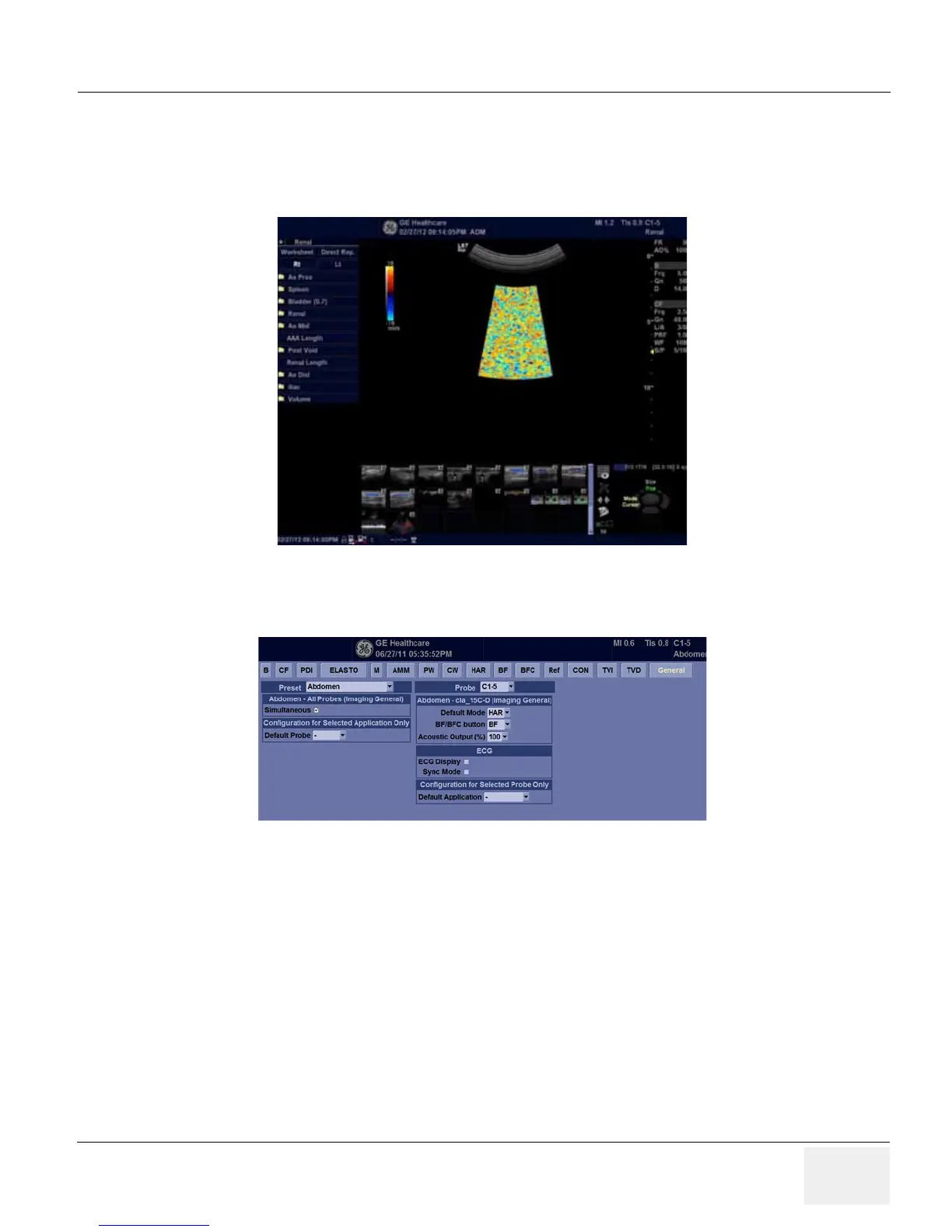

Figure 4-22 Color Flow-Mode
4-3-7-4 Pulse Doppler Mode
Figure 4-23
1.) From Utility -> Imaging -> General, verify check on “Simultaneous”.
2.) Press B Mode button.
3.) Press PW Mode Button.
4.) Verify that system scan B/PW duplex with the activated probe.
