8-40 Section 8-7 - Replacement Top Cover
8-7-4 Installation Procedure
1.) Cover to be installed in reverse order of removal.
2.) Make sure “latches” on both sides are engaged.
NOTE: For Mid and High Cabinet type, there is “Guide Rail” for installation.
Simply align “Cover Rail” on cover side to “Rail Guide” in chassis side.

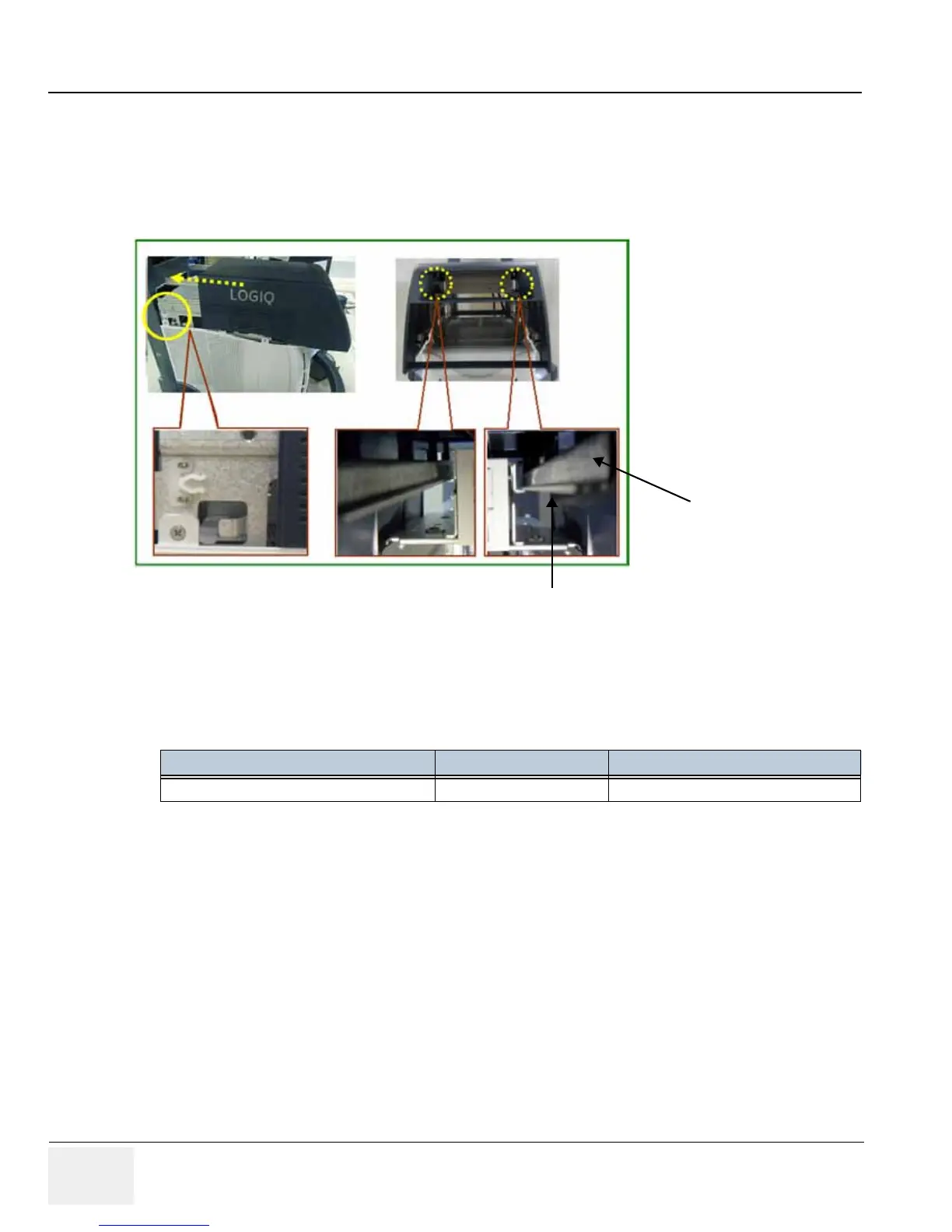

Figure 8-20 Cover Rail and Cover Guide
8-7-5 Functional Check
Visual inspection only.
Test Refer to Note
System Exterior Visual Check Section 4-3-1
