3-13-4 TCPIP
This configuration category enables users with administrative rights to set the TCPIP for the system and
connected remote archive.
1.) Type the name of the Ultrasound system in the Computer Name field.
2.) In the IP settings section, identify the ultrasound system to the rest of the network by one of the
following:
- DO NOT enable DHCP.
- Type the IP-Address (acquire unique static IP address from hospital network administrator),
Subnet Mask, and Default Gateway (if applicable).
NOTE: Do not set up the system with DHCP. The IP address MUST BE static for the diagnostic and DICOM to
function correctly.
3.) Select Save settings.
4.) Re-boot the ultrasound system.
NOTE: TCPIP settings do not get restored when restoring backups. This is per system design. The LOGIQ S7
Expert/Pro IP address MUST BE unique.

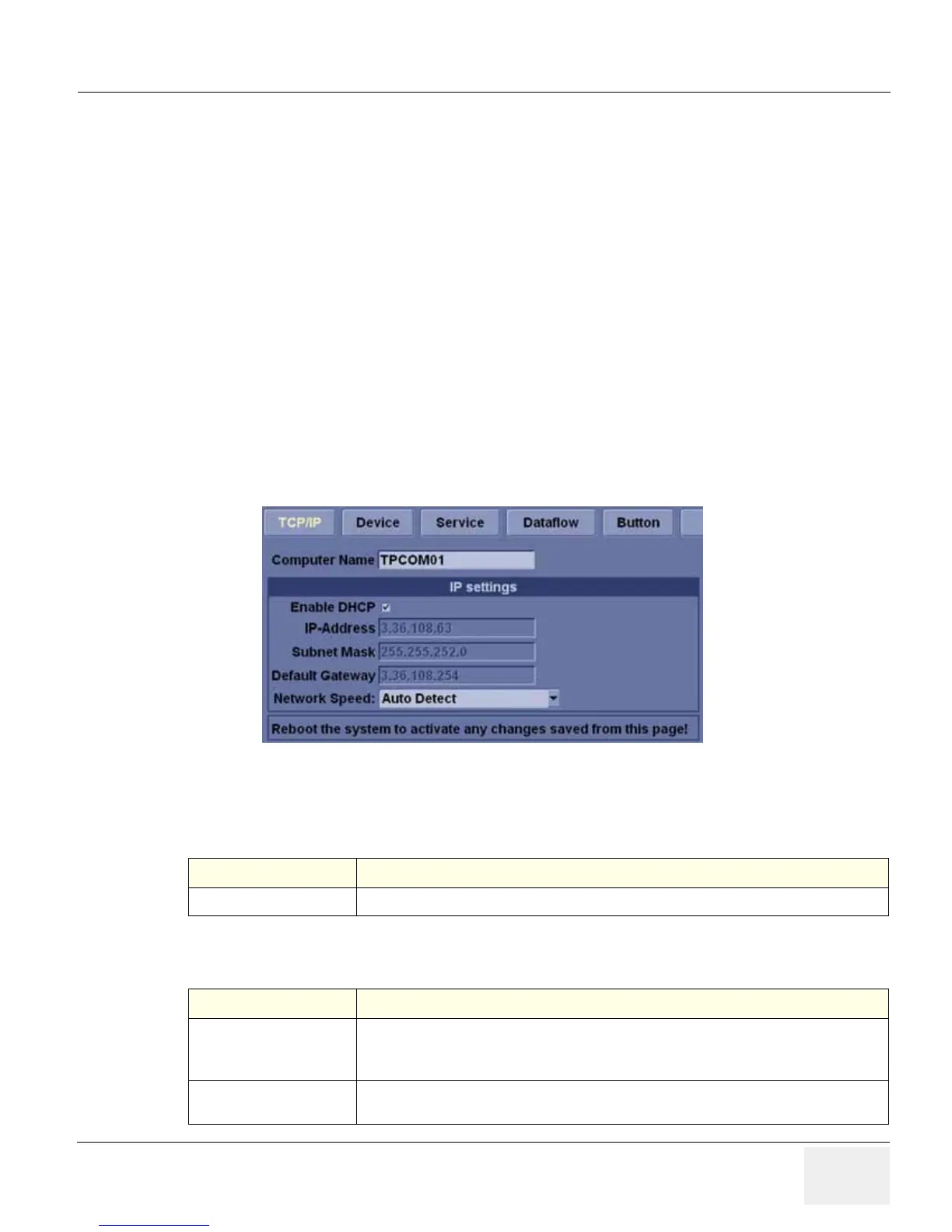

Figure 3-33 Connectivity TCPIP Preset Menu
Table 3-20 Computer Name
Preset Parameter Description
Computer Name Type the unique name for the Ultrasound system (no spaces in name).
Table 3-21 IP settings
Preset Parameter Description
Enable DHCP
DO NOT select this box to enable dynamic IP Address selection.
NOTE: The system shall disable IP-Address, Subnet Mask, and Default Gateway when the user
chooses to use DHCP.
IP-Address
Type the IP Address of the Ultrasound system. NOTE: IP stands for Internet Protocol. Every
device on the network has a unique IP address.
