GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 4 - Functional Checks 4-9
4-3-2-4 Swivel/Brake Lock Caster
NOTE: This procedure applies to RIGHT REAR Caster only.

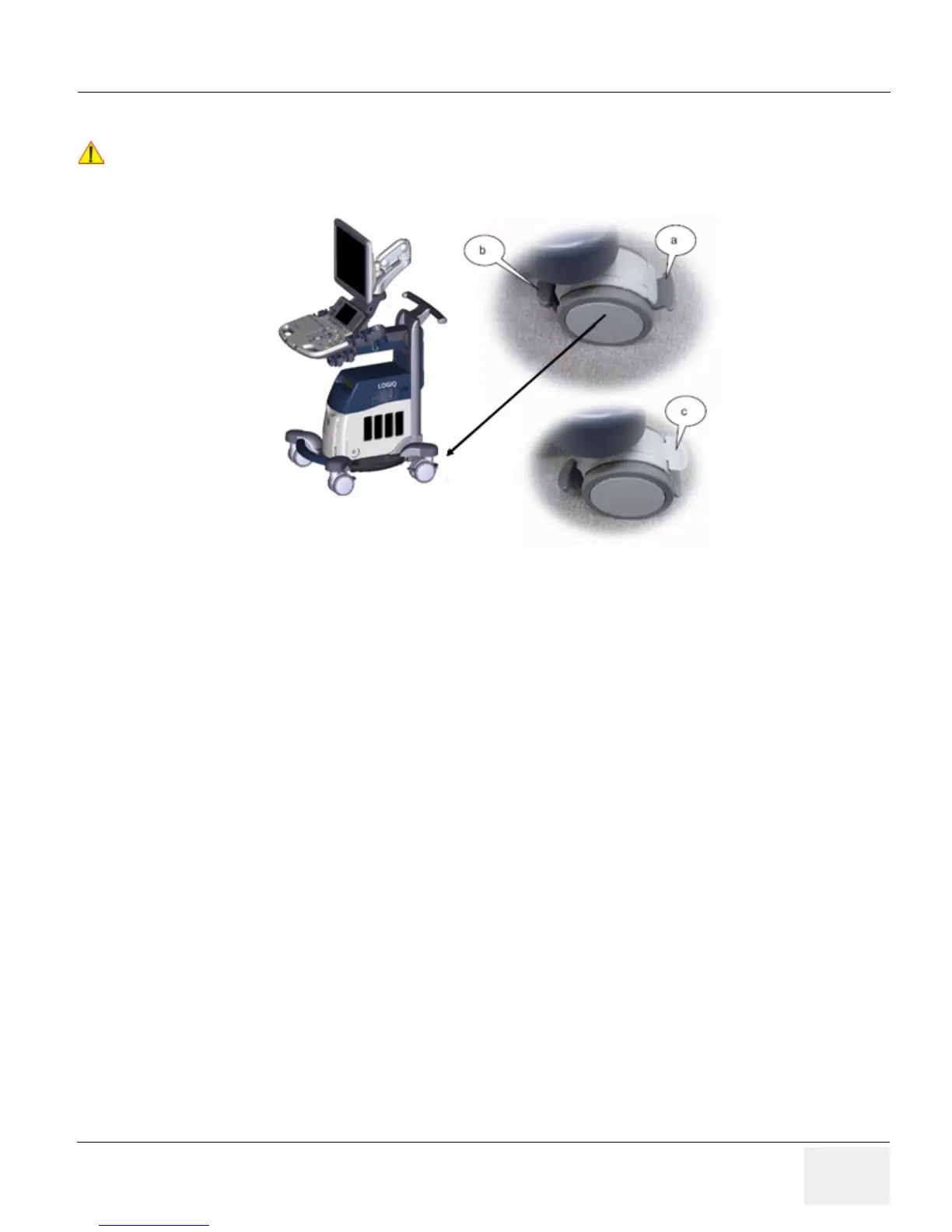

Figure 4-8 Right Rear Caster
1.) Press ‘a’. (see: Figure 4-8)
2.) Rotate wheel until it locks (only one lock position in 360deg turn).
3.) Verify Swivel Lock engages.
4.) Press ‘b’ downward. (see: Figure 4-8)
5.) Verify Brake is applied to the wheel. (i.e. Wheel does not rotate)
6.) Press ‘b’ upward.
7.) Verify Brake is released.
8.) Press ‘c’. (see: Figure 4-8)
9.) Verify Swivel is released.
CAUTION
!! CAUTION:
System weighs approximately 90kg. Pay attention for system stability when working with the
casters
