GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-48 Section 8-12 - Replacement of Monitor and LCD Arm Plastic Covers
Section 8-12
Replacement of Monitor and LCD Arm Plastic Covers
8-12-1 Manpower
Two person, 15 minutes.
8-12-2 Tools
Phillips screwdriver, Wrench.
8-12-3 Preparations
1.) Lock the Monitor Arm to prevent hazard. Refer to the figure below.
8-12-4 Monitor Remove Procedure
1.) Unscrew 2 screws, then remove the Monitor rear panel. Refer to the figure below.
Be careful not to fall the monitor during the replacement process.

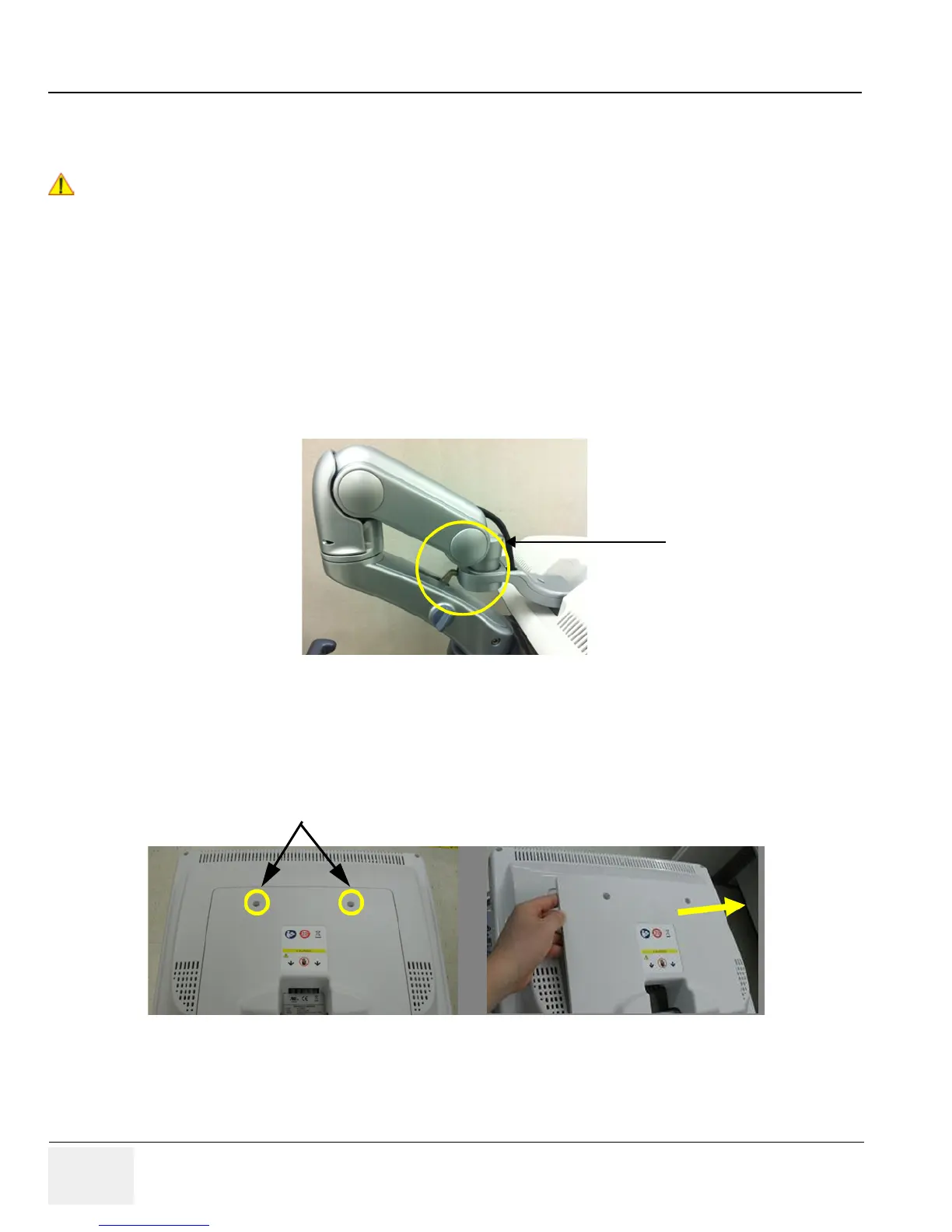

Figure 8-31 Locking the Monitor Arm
Figure 8-32 Removing the Monitor cover
To Next Page
