GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-39
Section 8-7
Replacement Top Cover
8-7-1 Manpower
1 person, 5 min.
8-7-2 Tools
None required.
8-7-3 Removal Procedure
1.) Top Cover shapes differ for each configuration, but removal/installation procedure are the same.

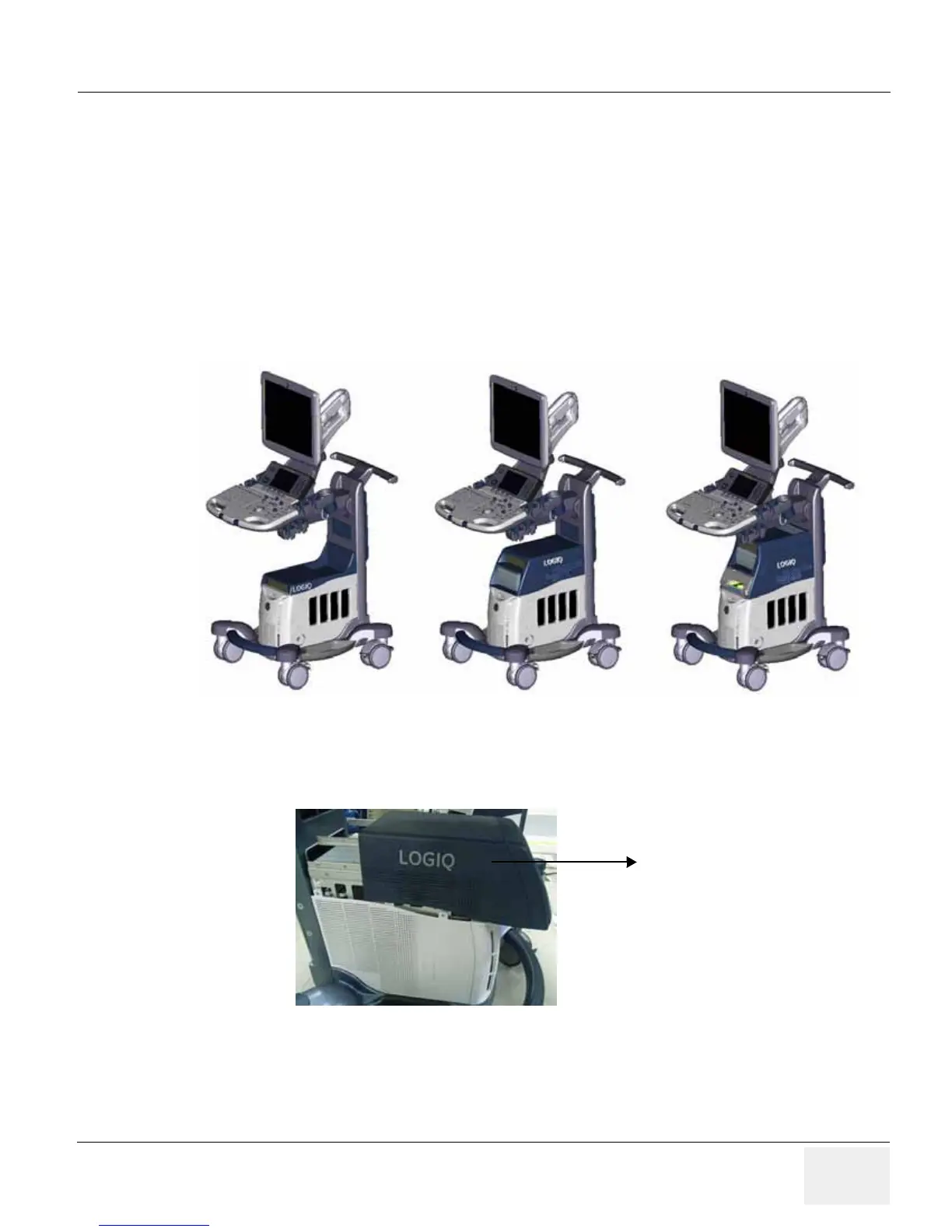

Figure 8-18 Cabinet
2.) Slide out Top Cover toward front of the console. No tools required.
Figure 8-19 Slide out Top Cover
