GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-52 Section 8-12 - Replacement of Monitor and LCD Arm Plastic Covers
4.) Unscrew 1 screw and Remove the 1st Arm Cover. Refer to the figure below.
8-12-7 LCD Arm Plastic Covers Installation Procedure
1.) Parts to be installed in reverse order of removal.
8-12-8 Functional Check

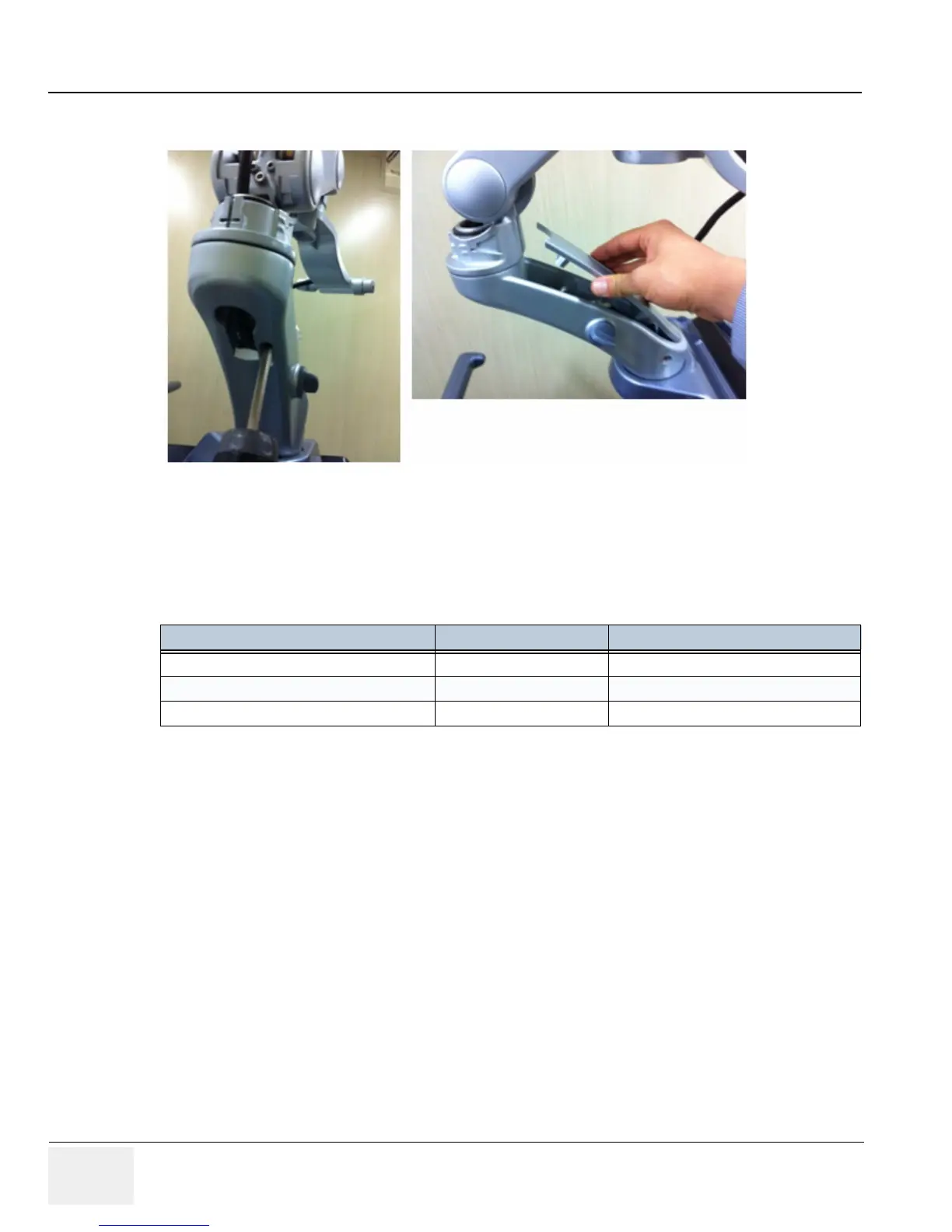

Figure 8-40 Removing the 1st Arm Cover
Test Refer to Note
System Exterior Visual Check Section 4-3-1 Visual check Main LCD
Mechanical Parts Functional Check Section 4-3-2 Subsection 4-3-3-2 LCD Arm
Power On/Off Section 4-3-3
