6-2 Section 6-3 - LCD Monitor Adjustment
Section 6-3
LCD Monitor Adjustment
The LOGIQ™ S7 Expert/Pro has a free adjustable LCD monitor in relation to the user interface.
The digital control panel is located at the front of the color monitor. It is NOT recommended to change
the pre-adjusted settings. However, if you are not satisfied with the factory settings, use these
controls to program those you prefer in each resolution.
NOTE: All changed values will only be saved by selecting “Exit” from the OSD.
If not, the adjusted values will be lost after loss of power.

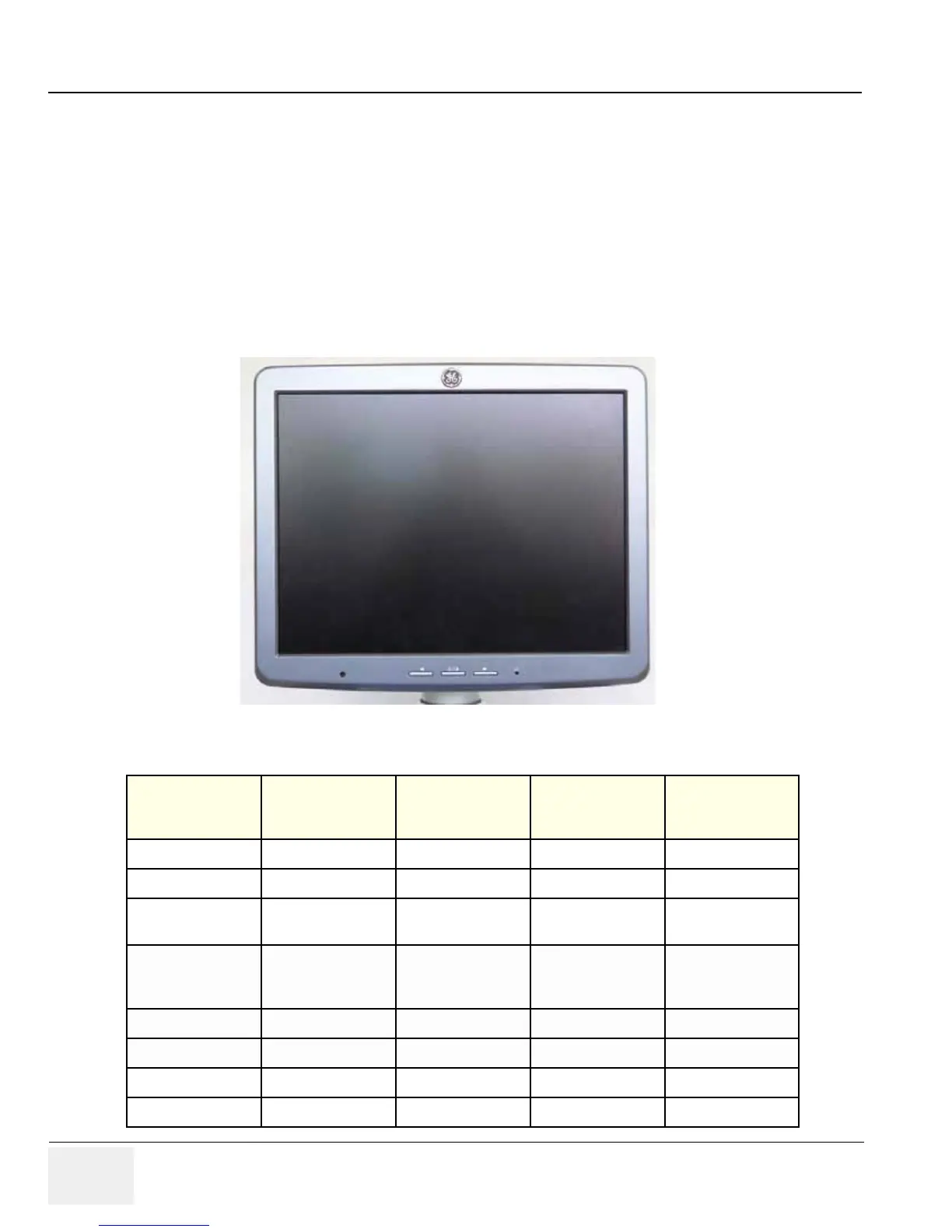

Figure 6-1 Monitor Adjustment buttons
Table 6-2 LCD Montor Adjustment
Main Menu Sub Menu Range
Setting for
LOGIQ™ S7
Expert/Pro
1 Picture Contrast 0~100% 100%
Brighness 0~100% 80%
Colortemp/Gamma
Select 2.2 or 2.4 2.4
Colortemp/Mode
9000K/11000K/
13000K/15000K/
USER
13000K
2 Not Used
3 Function Scale Full/5:4/Native Full
Information
Memory Recall Factory Default
To Next Page
