GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-127

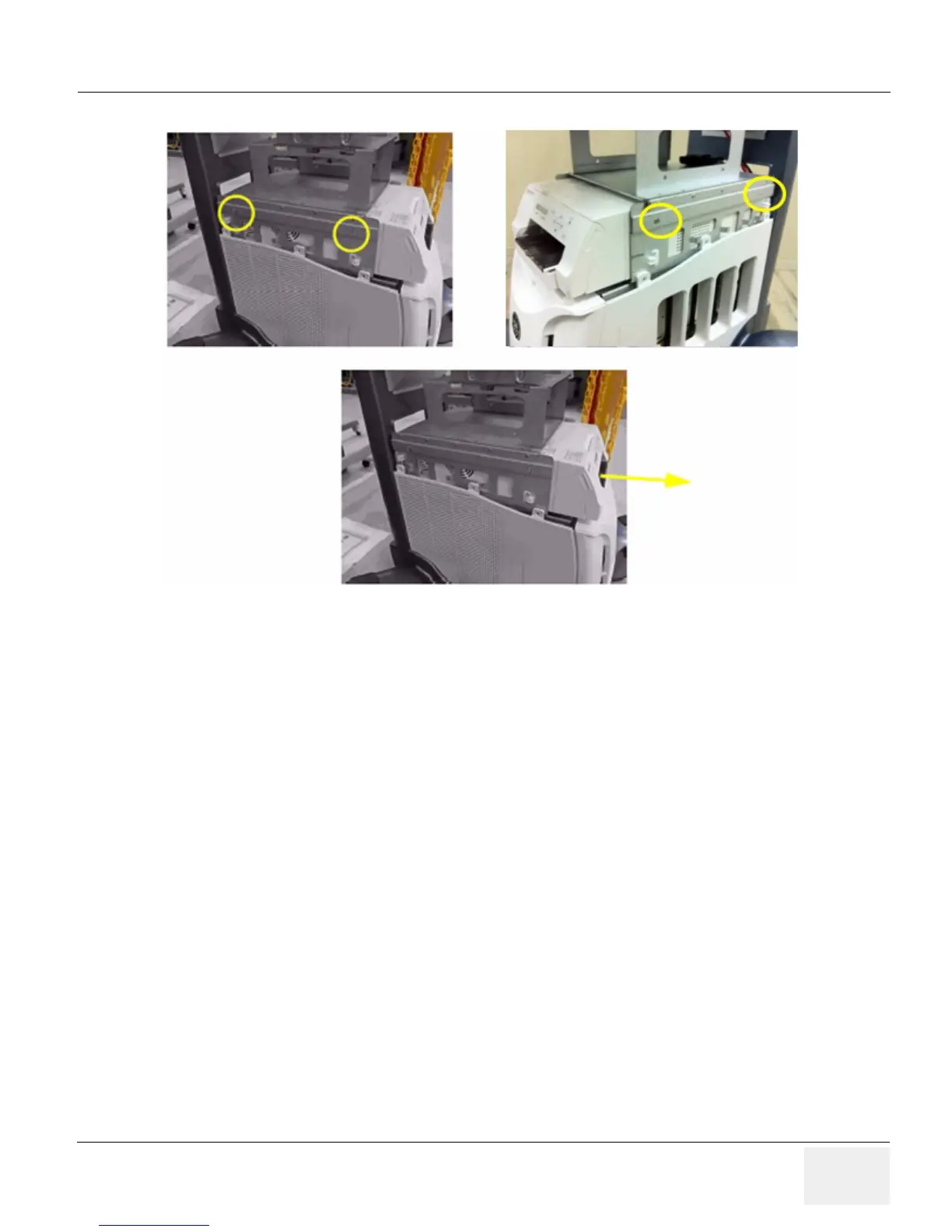

4.) Unscrew four screws and pull put the Color pritner
Figure 8-146 Remove the Color printer
8-29-2-2-4 Installation Procedure
1.) Parts to be installed in reverse order on removal.
8-29-2-2-5 Functional Check
Test 1: Print an image by pressing the button P2 on the operator panel. (P2 key should be
configured correctly)
Verify1: - Verify that image can be printed.
Verify2: - Verify that printed image has no distortion as compared the image on screen.
