GE LOGIQ S7 Pro User Manual

GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-113
Section 8-26
Replacement of Peripheral Cable Assy
8-26-1 DVD Cables
8-26-1-1 Manpower
One person, 45 minutes.
8-26-1-2 Tools
Phillips screwdriver.
8-26-1-3 Removal Procedure
1.) Remove the DVD cable connector from the rear panel.

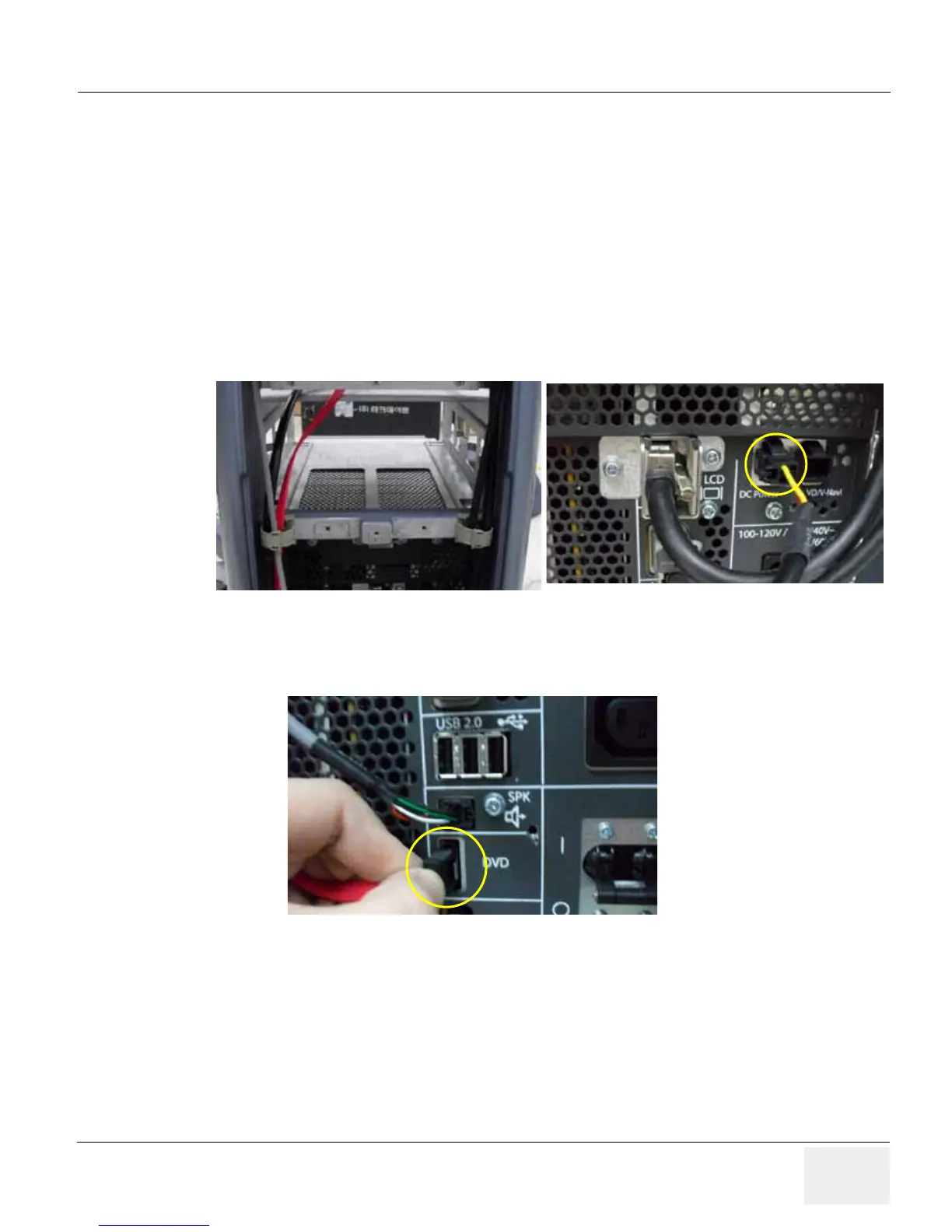

Figure 8-123 Remove DVD cable connector from rear panel
2.) Remove the DVD cable connector from the rear panel.
Figure 8-124 Remove DVD cable connector from rear panel
DVD Cable
