7-2 Section 7-2 - Collect Vital System Information
Section 7-2
Collect Vital System Information
7-2-1 Collecting System Information
The following information is necessary to properly analyze data or images being reported as a
malfunction or being returned to the manufacturer:
NOTE: This information is normally collected with the Alt+D or Gather Logs utility.
- Product Name = LOGIQ™ S7 Expert/Pro
1.) From the touch panel, select Utility -> System-> About.

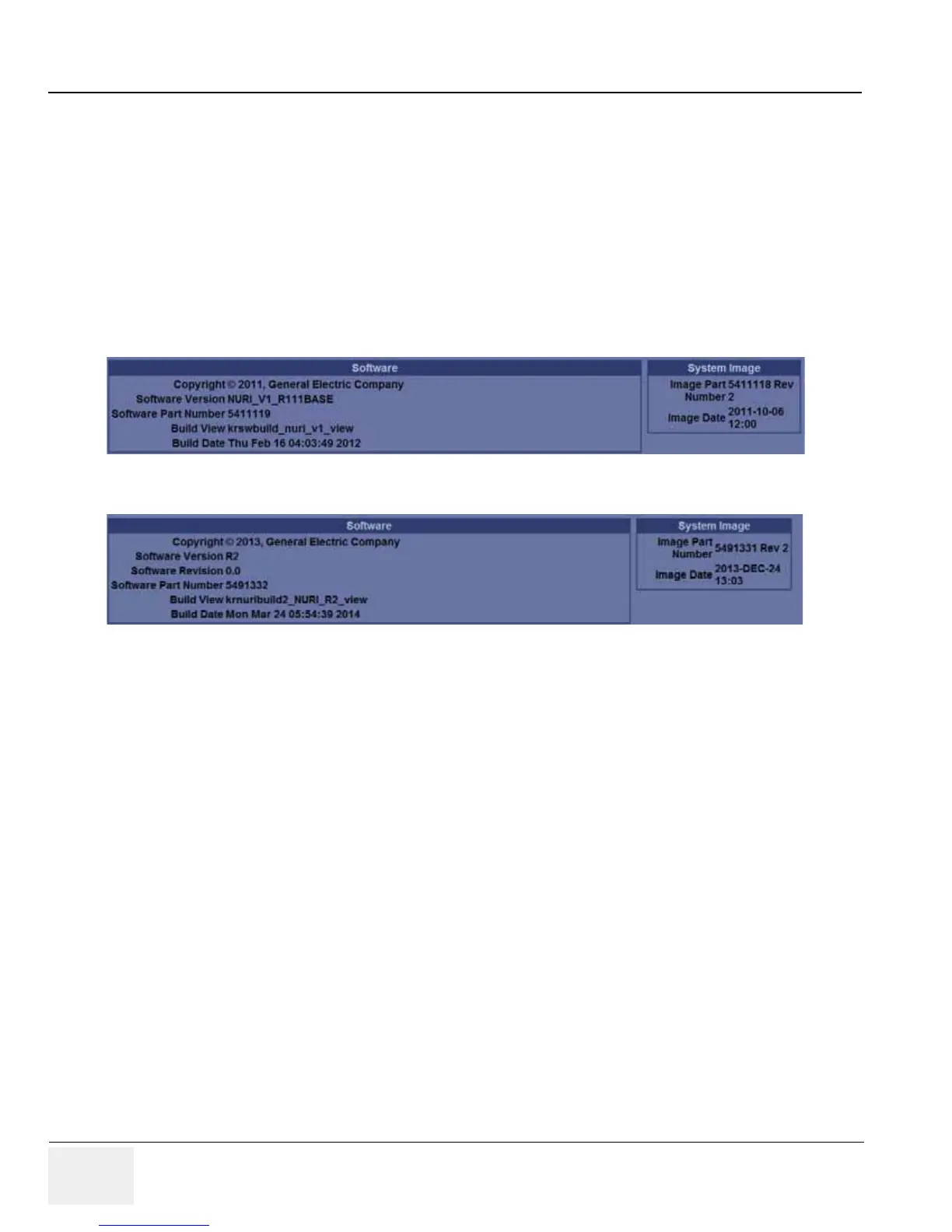

Figure 7-1 About (R1.x.x)
Figure 7-2 About (R2.x.x)
2.) Record software version and System Image version
Applications Software
- Software Version
- Software Revision (R2.x.x or later)
- Software Part Number
- Build View
- Build Date
System Base Image Software
- Base Image Revision
- Image Part Number
- Image Date
