GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-128 Section 8-30 - Replacement of the Speaker
Section 8-30
Replacement of the Speaker
8-30-1 Man Power
1 person, 10 minutes.
8-30-2 Tools
Phillips Screwdriver.
8-30-3 Removal
1.) Remove Rear Cover.
2.) Remove Cable Cover.
3.) Remove 4 screws holding Speaker Back Plate.
4.) Remove Speaker Back Plate
.

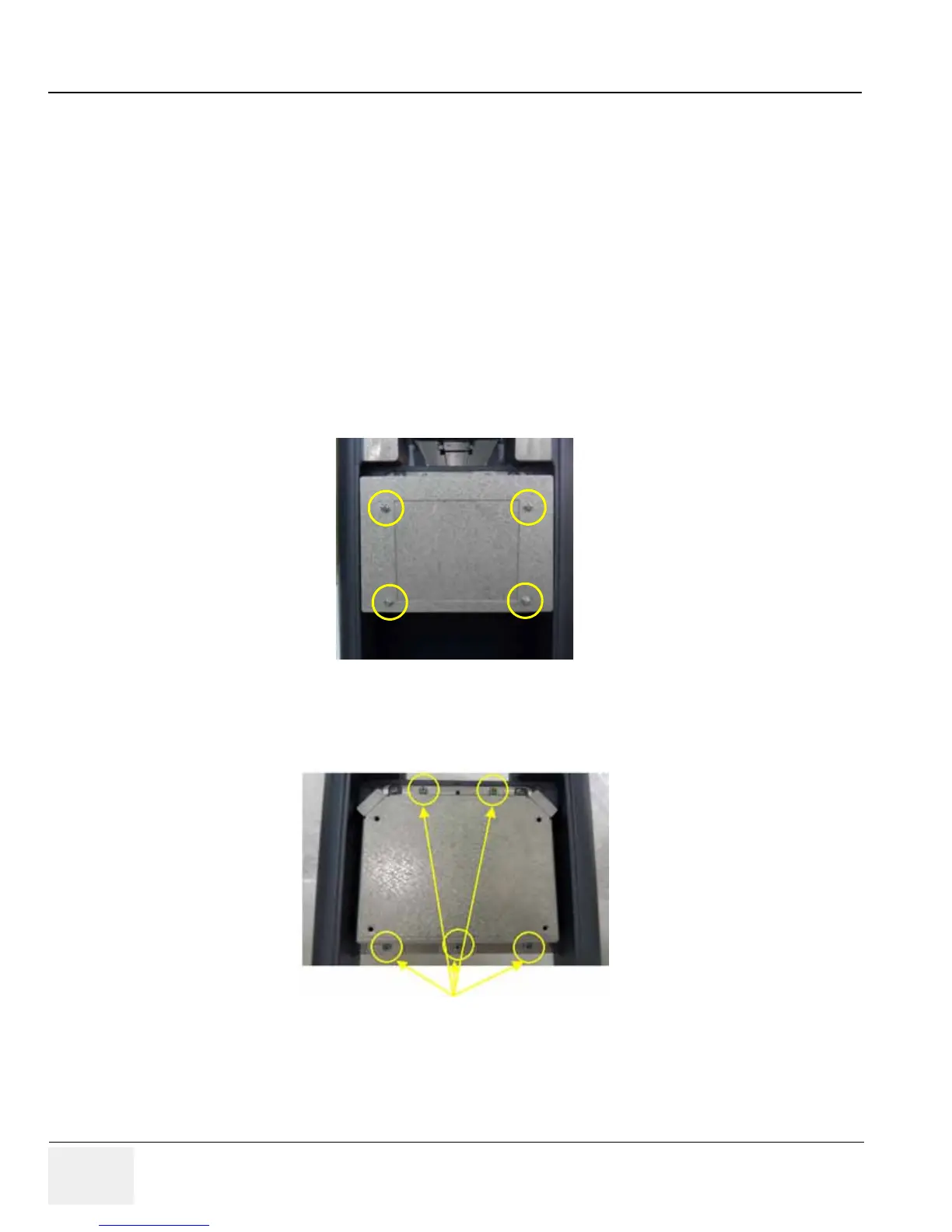

Figure 8-147 Speaker Back Plate
5.) Remove 5 screws holding Speaker Baffle Plate.
6.) Remove Speaker BafflePlate
.
Figure 8-148 Speaker BafferPlate
