GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-21
Section 3-7
Completing the Set Up
3-7-1 Connecting the Unit to a Power Source
The connection of the LOGIQ™ S7 Expert/Pro ultrasound unit to a power source should be performed
by a qualified person who has completed basic LOGIQ™ S7 Expert/Pro System User Training. Use only
the power cords, cables and plugs provided by or designated by GE Healthcare to connect the unit to
the power source.
3-7-2 Power On / Boot Up
3-7-2-1 Scanner Power On
1.) Connect the Main Power Cable to the back of the system. Refer to Section 8-28 for details.
2.) Connect the Main Power Cable to a hospital grade power outlet with the proper rated voltage.
Never use an adapter that would defeat the safety ground.
3.) Switch ON the Circuit at the rear of the system.
CAUTION
!! CAUTION:
Prior to connect the LOGIQ™ unit to a power source, verify compliance with all electrical and
safety requirements. Check the power cord to verify that it is intact and of hospital-grade.
Products equipped with a power source (wall outlet) plug should be connected to the fixed
power socket that has a protective grounding conductor. Never use an adapter or converter to
connect with a power source plug (for example, a three-prong to two-prong converter).
WARNINGWARNING
!! WARNING:
The unit’s power must be supplied from a separate, properly rated outlet to avoid risk
of fire. Refer to Section 2-2-2-1 "LOGIQ™ S7 Expert/Pro Power Requirements" on page
2-3 for rating information. The power cord should not, under any circumstances, be
altered to a configuration rated less than that specified for the current.
CAUTION
!! CAUTION:
Whenever disconnecting the LOGIQ™ system from the electrical outlet, always observe the
safety precautions. First unplug the main power cable from the wall outlet socket, then from the
unit itself. Remove by pulling on the cable connector - DO NOT pull on the cable.
CAUTION
!! CAUTION:
The LOGIQ™ S7 Expert/Pro requires all covers!
Operate this system only when all board covers and frame panels are securely in place.
The covers are required for safe operation, good system performance and cooling purposes.

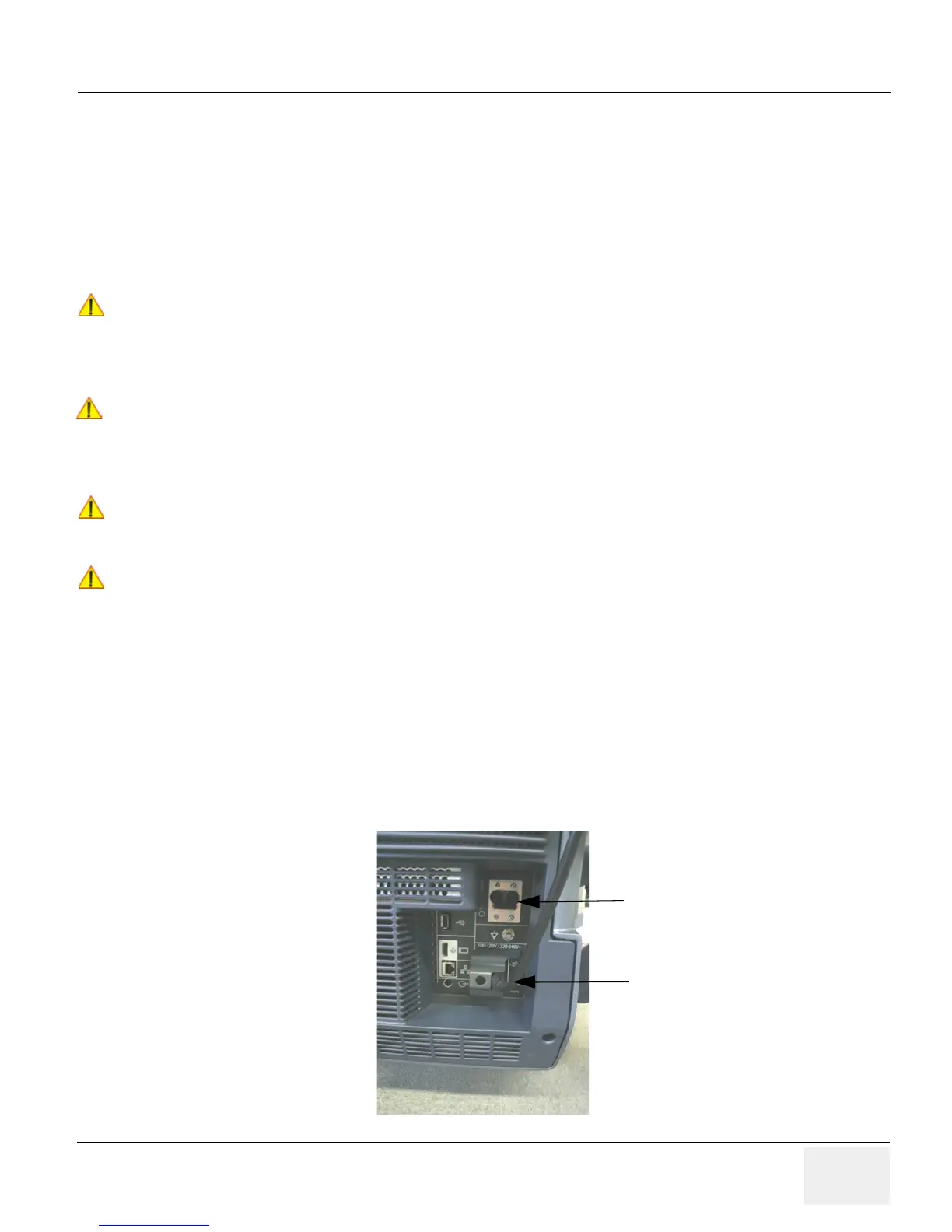

Figure 3-10 Circuit and main power cable at rear of system
Circuit
Main Power
