GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 6 - Service Adjustments 6-3
Note : 1280 x 1024, 60Hz
6-3-1 Brightness/Contrast
6-3-1-1 Brightness
Adjusting the monitor’s contrast and brightness is one of the most important factors for proper image
quality. If these controls are set incorrectly, the Gain, TGC, Dynamic Range and even Acoustic Output
may have to be chaged more often than necessary to compensate.
The proper setup displays a complete gray scale. The lowest level of black should just disappear into
the background and the hightest white should be bright, but not saturated.
1.) Adjust the BRIGHTNESS by pressing the < LEFT or RIGHT> button to decrease/increase value.
SBC ON/OFF ON
4 OSD Language
English/German/
French/Spanish/
Italian/Swedish/
Chinese/Japanese
English
H-Position 0~100% 50%
V-Position 0~100% 50%
Half Tone 0~100% 50%
5Exit

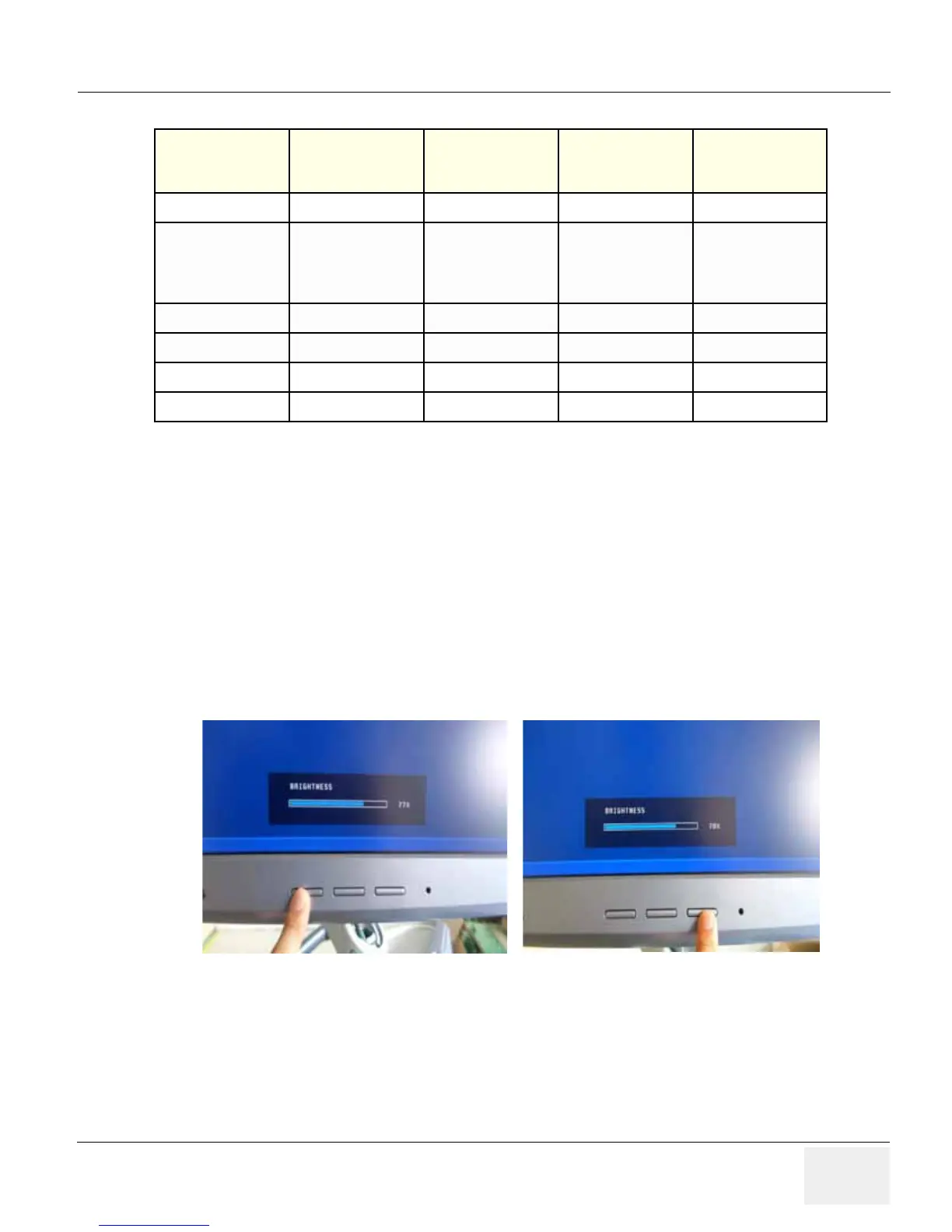

Figure 6-2 Brightness Adjust
Table 6-2 LCD Montor Adjustment
Main Menu Sub Menu Range
Setting for
LOGIQ™ S7
Expert/Pro
