8-112 Section 8-25 - Replacement of the Harness Cable, Cable Duct, and OPIO Cable Assy
10.)Disconnect Harness cables.
8-25-6 Installation Procedure
Install components in reverse order of removal.
8-25-7 Functional Check
Power ON and Visual check on LCD monitor to see if image displays without color distortion.

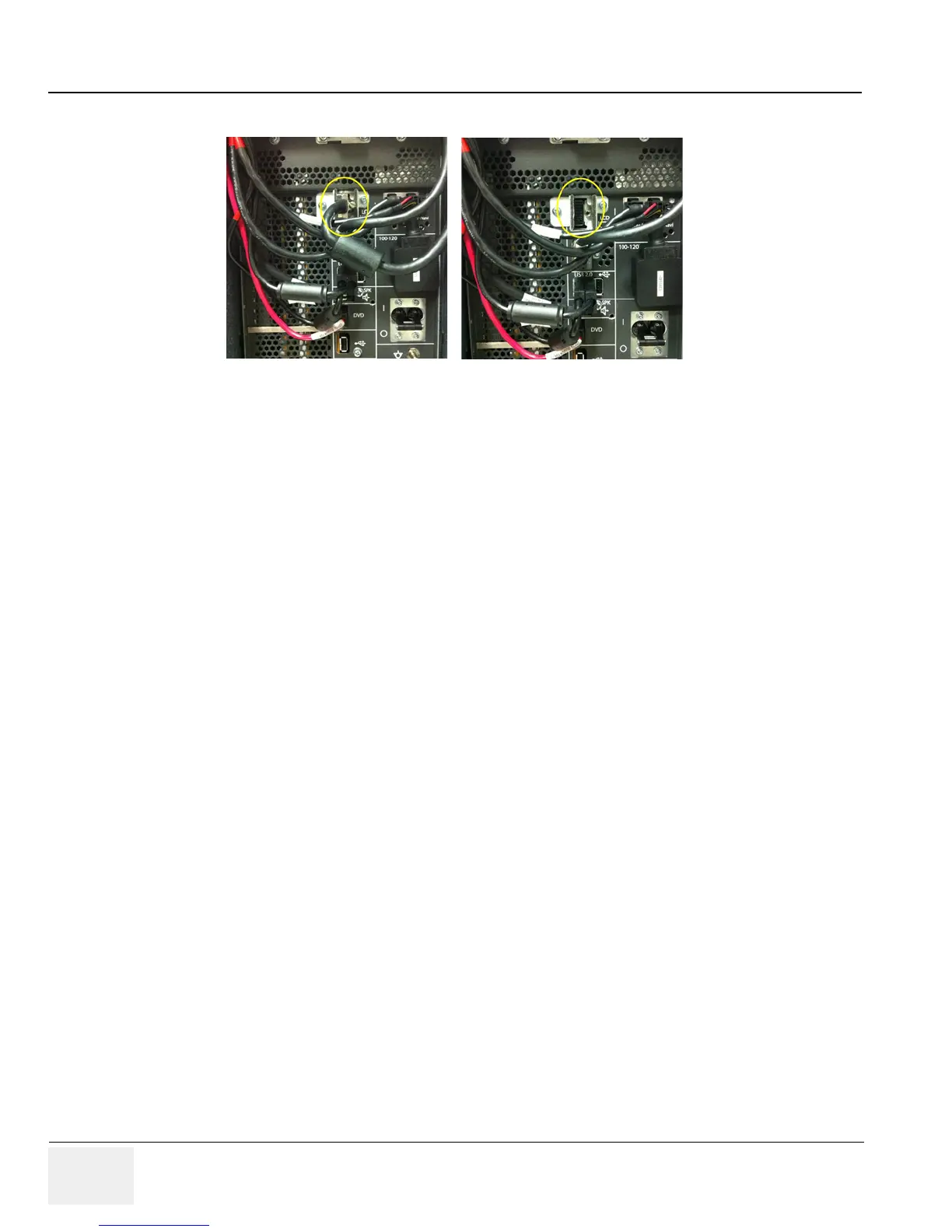

Figure 8-122 Disconnecting Harness cables
