GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-94 Section 8-21 - Replacement of the SOM,HDD and DVR
8-21-4 Removal Procedure (R2.x.x or later)

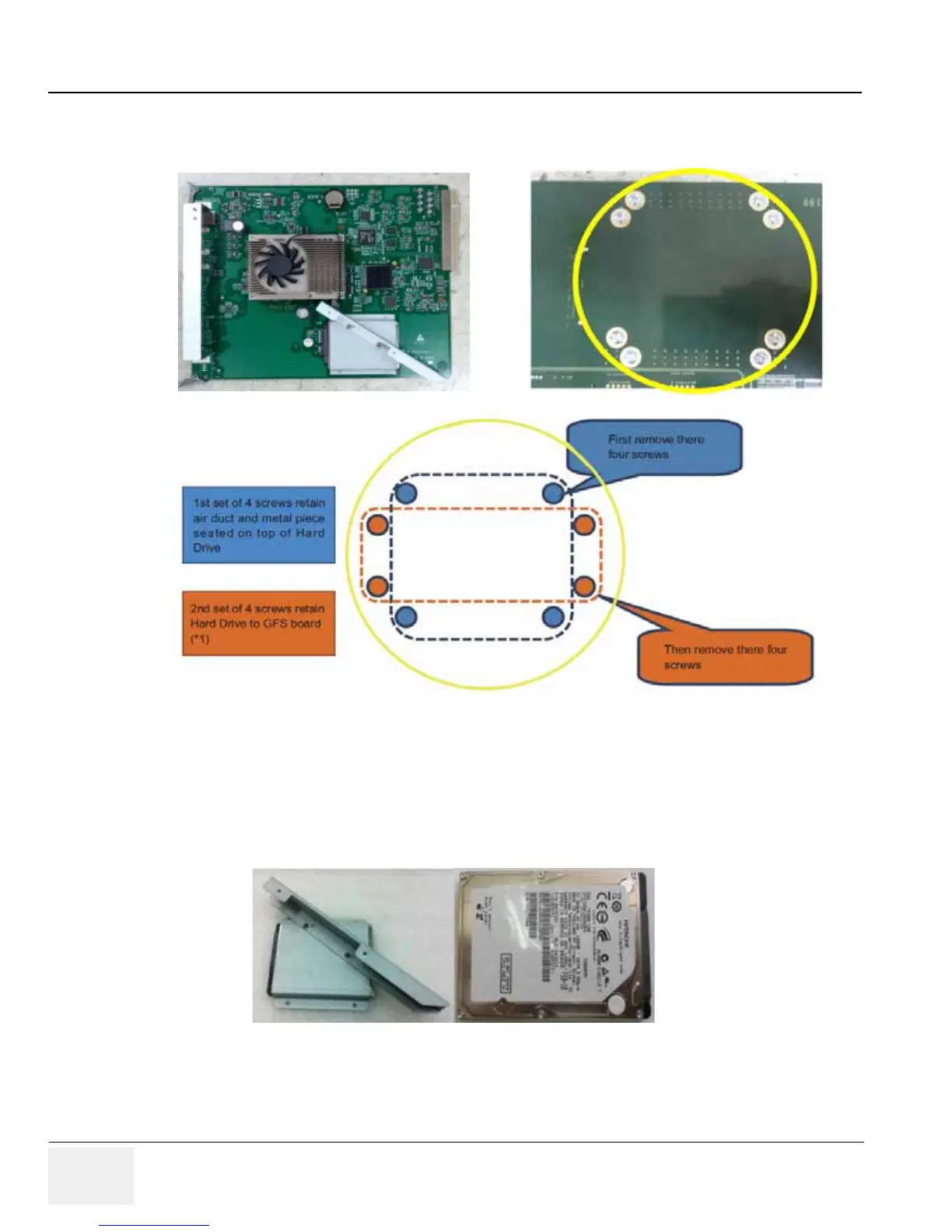

1.) Unscrew eight screws and separate Hard disk from the GFS T6.
Figure 8-102 Separating Hard Disk
2.) Remove the bracket from the hard disk.
Figure 8-103 Removing the hard disk bracket
NOTE: (*1) When screws removed, Hard Disk Drive is connected to GFS T6
board only by its connector. Pay extra attention when flipping GFS T6
Board
To Next Page
