GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-80 Section 8-16 - Replacement around ACQ Box
8-16-7 Removal Procedure - ACQ Box
1.) Remove Front Cover.
2.) Remove 2 screws. Refer to the figure below.
3.) Get access to ACQ Box (Refer to Section 8-18-3 ACQ Box Access).
4.) Remove 2 cap screws on bottom of the ACQ Box.

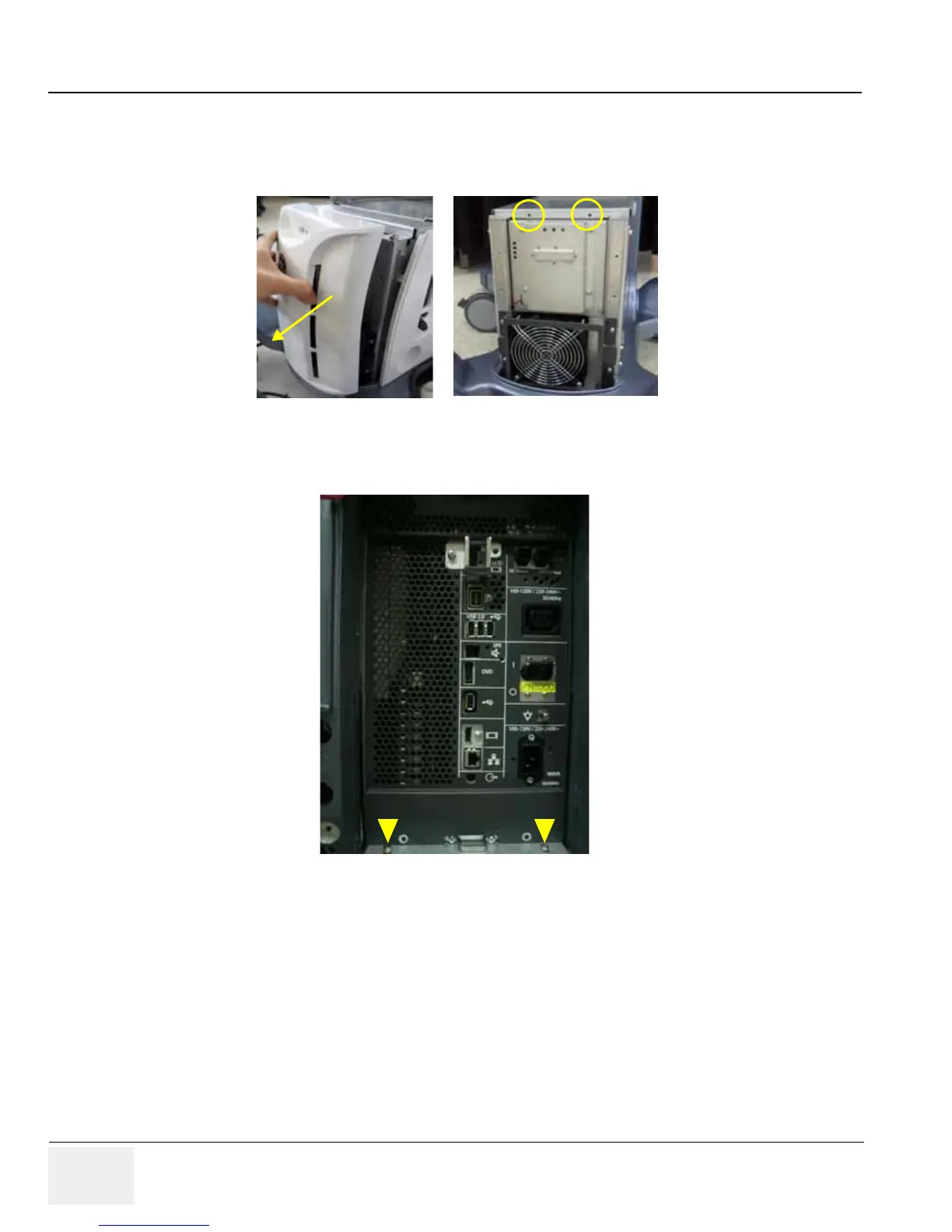

Figure 8-82 ACQ Box
5.) Pull out ACQ box from console.
Figure 8-81 Removing the front cover
