6.) Unscrew four screws to separate FAN Assy.
8-18-4 Installation Procedure
1.) Parts to be installed in reverse order of removal.
8-18-5 Functional Check
Visual examination.
1.) Verify that Fan is rotating when system is turned ON.
2.) Verify that LED indicator flickers when system is turned ON.

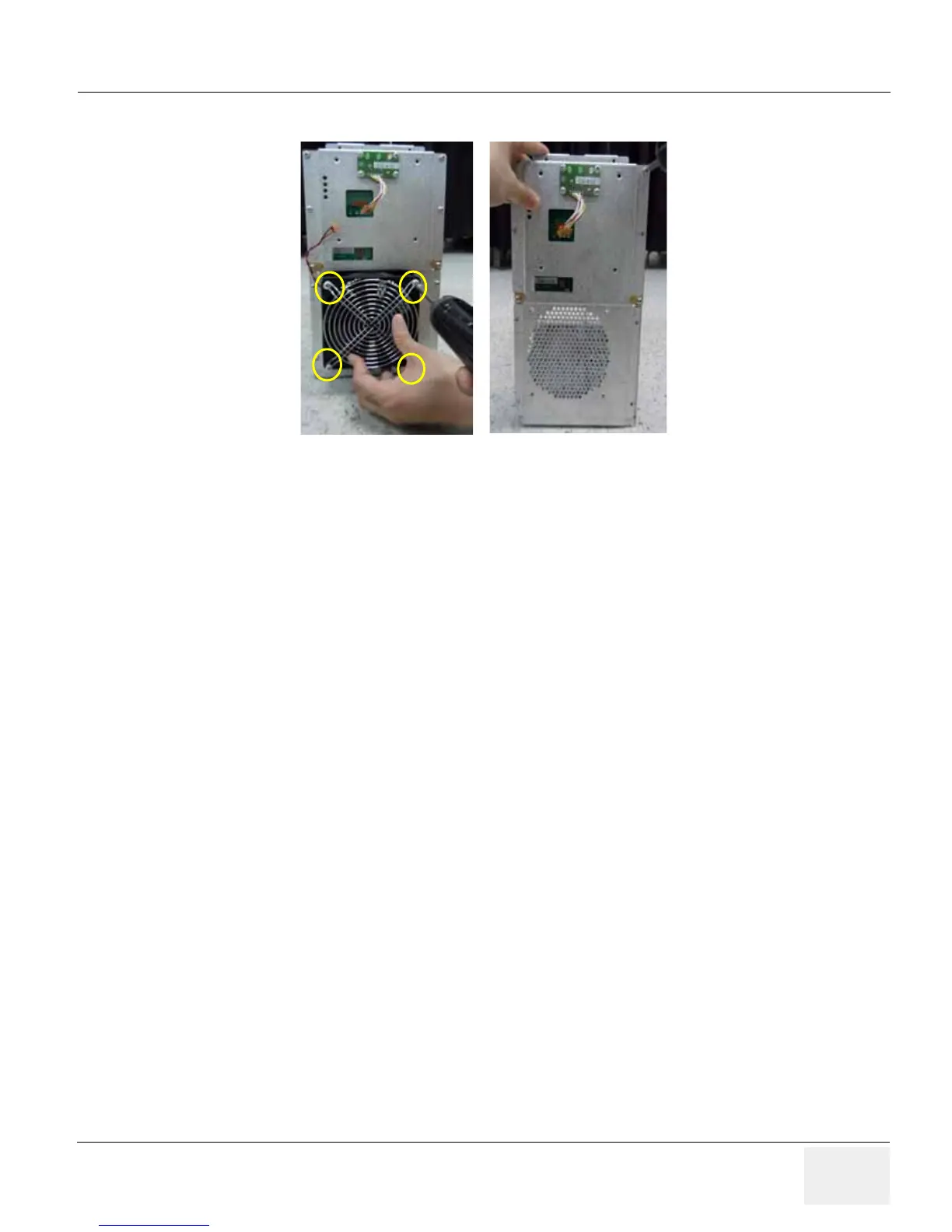

Figure 8-91 Removing the FAN Assy
To Next Page
