GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-129
7.) Remove 1 screw holding Ground Wire (Green Wire).
8.) Remove 8 screws holding Speaker
.

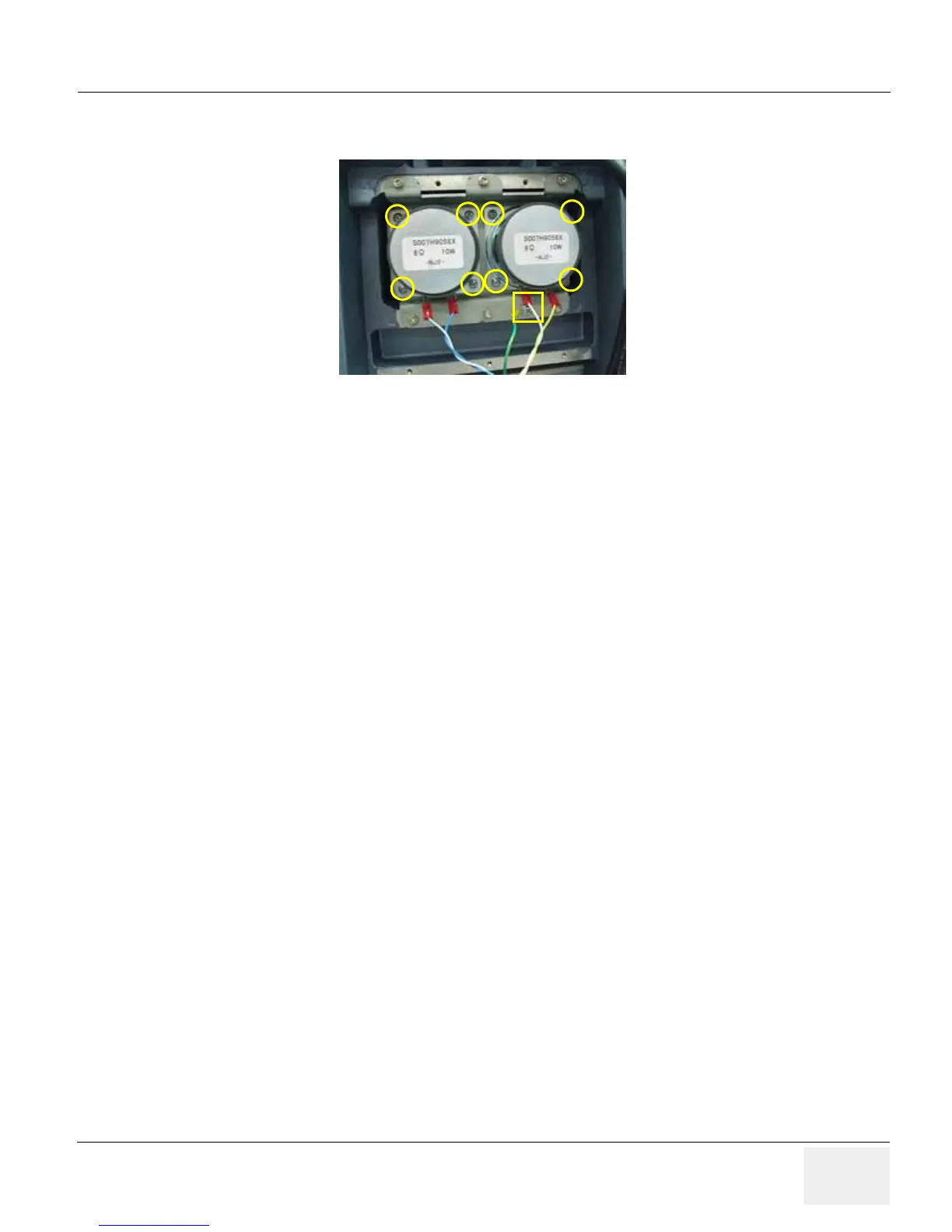

Figure 8-149 Removal screws of Speaker
8-30-4 Installation
1.) Parts to be installed in reverse order of removal.
8-30-5 Functional Check
Perform Diagsnotics
1.) Enter Common Service Desktop
2.) Select Diagnostics -> Service Diag -> Doppler Audio -> Execute
Make sure audible sound comes out of the speaker
NOTE: Make sure system volume is not set to zero.
