GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-139
Section 8-35
Replacement ECG Module
8-35-1 ECG Module
8-35-1-1 Manpower
1 person, 30 minutes
8-35-1-2 Tools
Phillips Driver
8-35-1-3 Removal Procedure

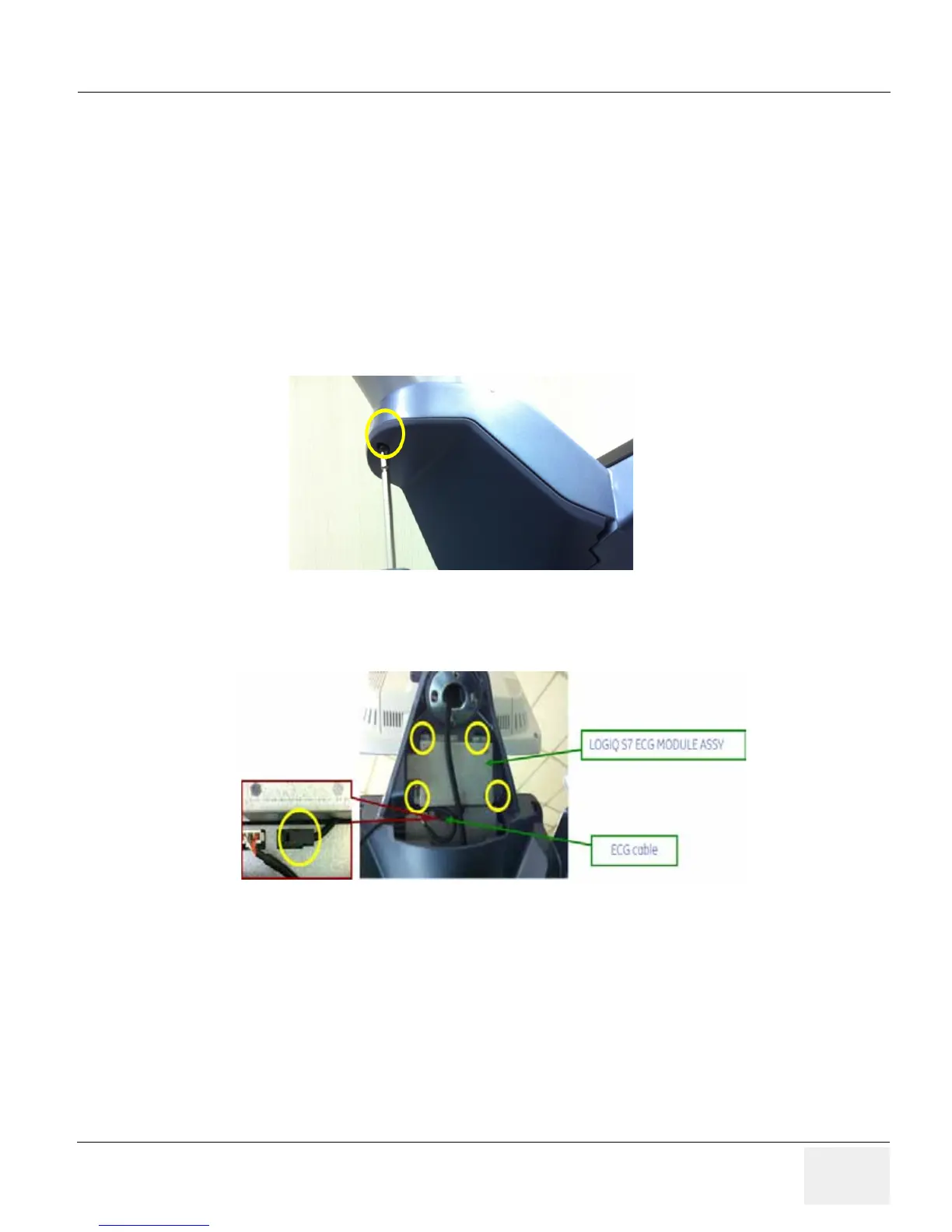

1.) Loosen the 1 screw and remove frame rear cover
Figure 8-164 Remove frame rear cover
2.) Loosen the 4 screw and dis-connect ECG cable.
3.) Remove LOGIQ S7 ECG MODULE ASSY
Figure 8-165 Remove frame rear cover
8-35-1-4 Installation Procedure
Parts to be installed in reverse order on removal.
8-35-1-5 Functional Check
Perform Diagnostics.
1.) Select “UTILITY” -> “Service”.
2.) From “DIAGNOSTICS”, select ECG Test.
3.) Verify test results shows PASS.
