8-74 Section 8-16 - Replacement around ACQ Box
8-16-4-1 Removal Procedure - Separating PIL and GBF128/64
1.) Unscrew 6 (six) screws and separate PIL Assy from the GBF128/64.
NOTE: Stacking Connector is designed to always remain on PIL side.

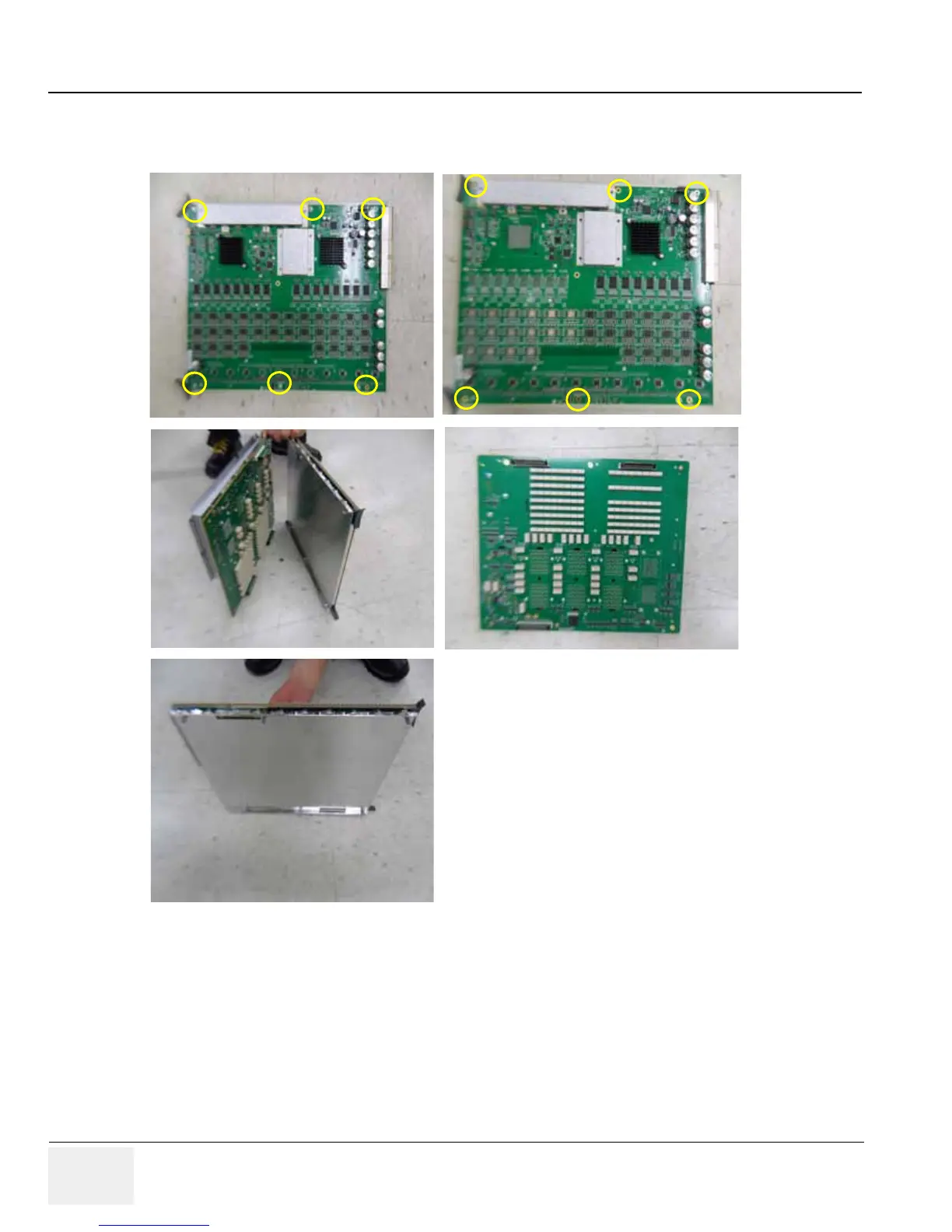

Figure 8-73 Separating PIL Assy from the GBF128/64
