GE LOGIQ S7 Pro - Replacement of the Probe Holder(Kit), Cable Hook, and Extended Probe Holder

GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-117
Section 8-27
Replacement of the Probe Holder(Kit), Cable Hook, and Extended probe holder
Replacement of Circle Key Caps only
8-27-1 Manpower
1 person, 5 minutes.
8-27-2 Tools
Phillips Screwdriver.
8-27-3 Removal Procedure
8-27-3-1 Removal Procedure - Probe Holder
1.) Simply pull out Probe Holder from its location.
NOTE: Probe holder will not require any tools.
NOTE: This procedure applies to all locations of probe holder, including extended probe holder (Option).

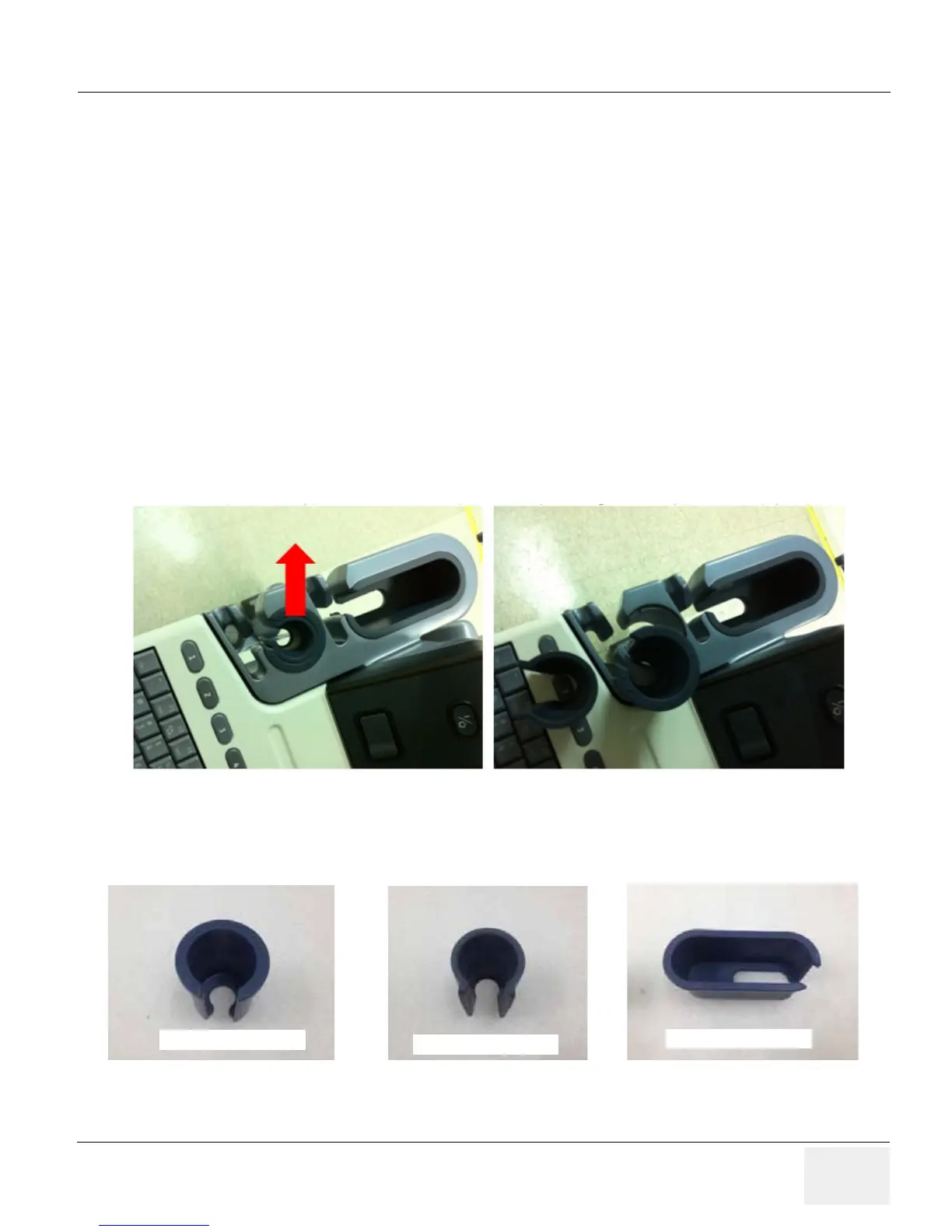

Figure 8-130 Probe Holder
Figure 8-131 Probe Holders
Probe Holder Removed
Probe Holder
Small Probe Cup
4D Probe Holder
