GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
5-24 Section 5-7 - Mechanical Descriptions
Section 5-7
Mechanical Descriptions
5-7-1 Physical Dimensions
Dimentions and Weight
• Height: 1,115mm (Minimum), 1,750mm (Max.)
• Width: 620mm (Caster), 500mm (Keyboard)
• Depth: 856mm (Max.), 790mm (Caster)
• Weight: 90kg (198 lbs)
5-7-2 LCD Monitor
The LOGIQ™ S7 Expert/Pro has a free adjustable LCD monitor in relation to the user interface.
• position up/down: +/- 7.5 cm
• position left/right: +/- 18cm
• rotation up/down: +90°/-15°
• rotation left/right: +/- 90°
5-7-3 OPIO Positioning
The control console can be rotated, translated and adjusted in height.

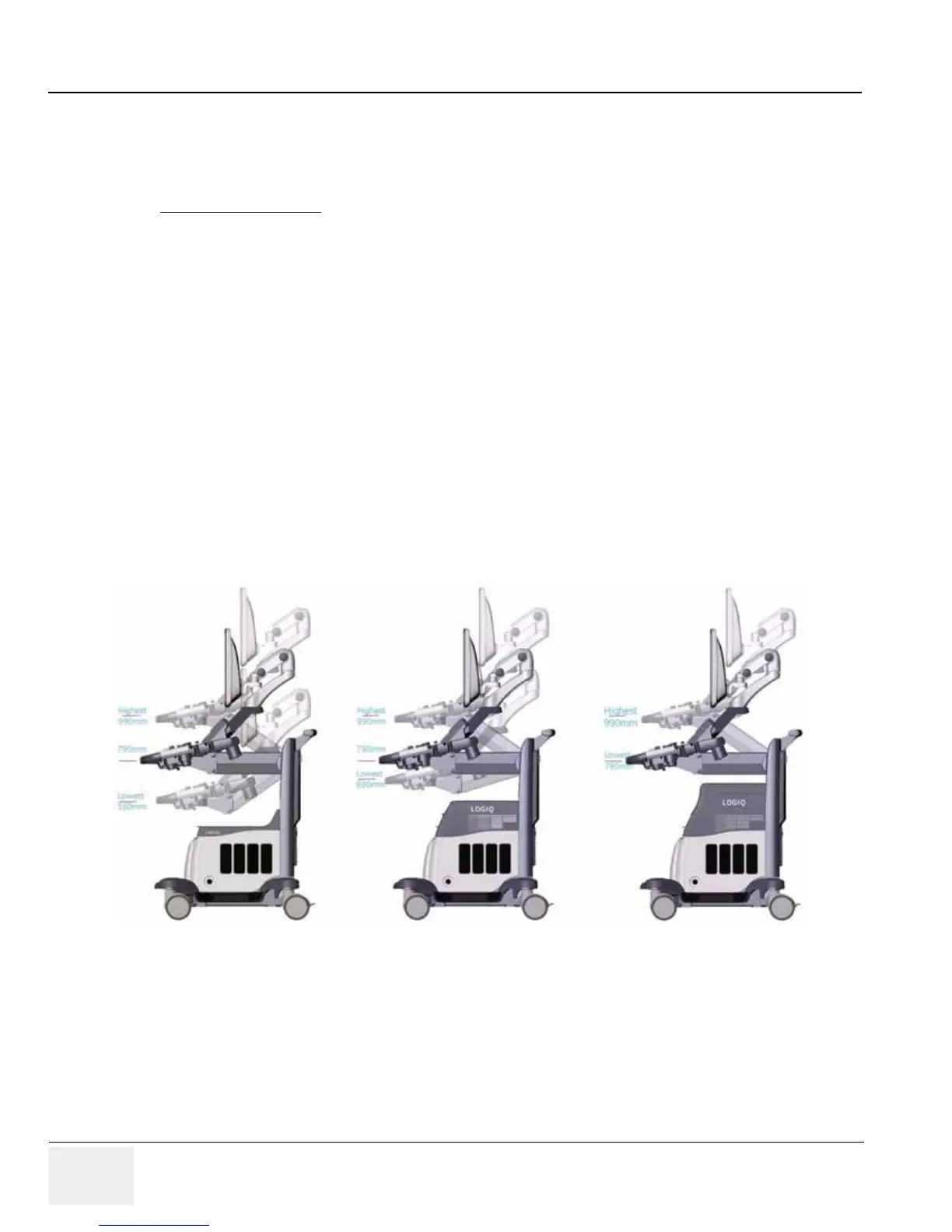

Figure 5-8 adjustable Control Console
