8-54 Section 8-13 - Replacement of OPIO and Related Parts
8-13-3-1 Removal Procedure - Trackball Ring
NOTE: Removal of Trackball Ring and Cleaning does not require tools.
1.) Turn the ring counter clock-wise
2.) Lift trackball from OP Panel

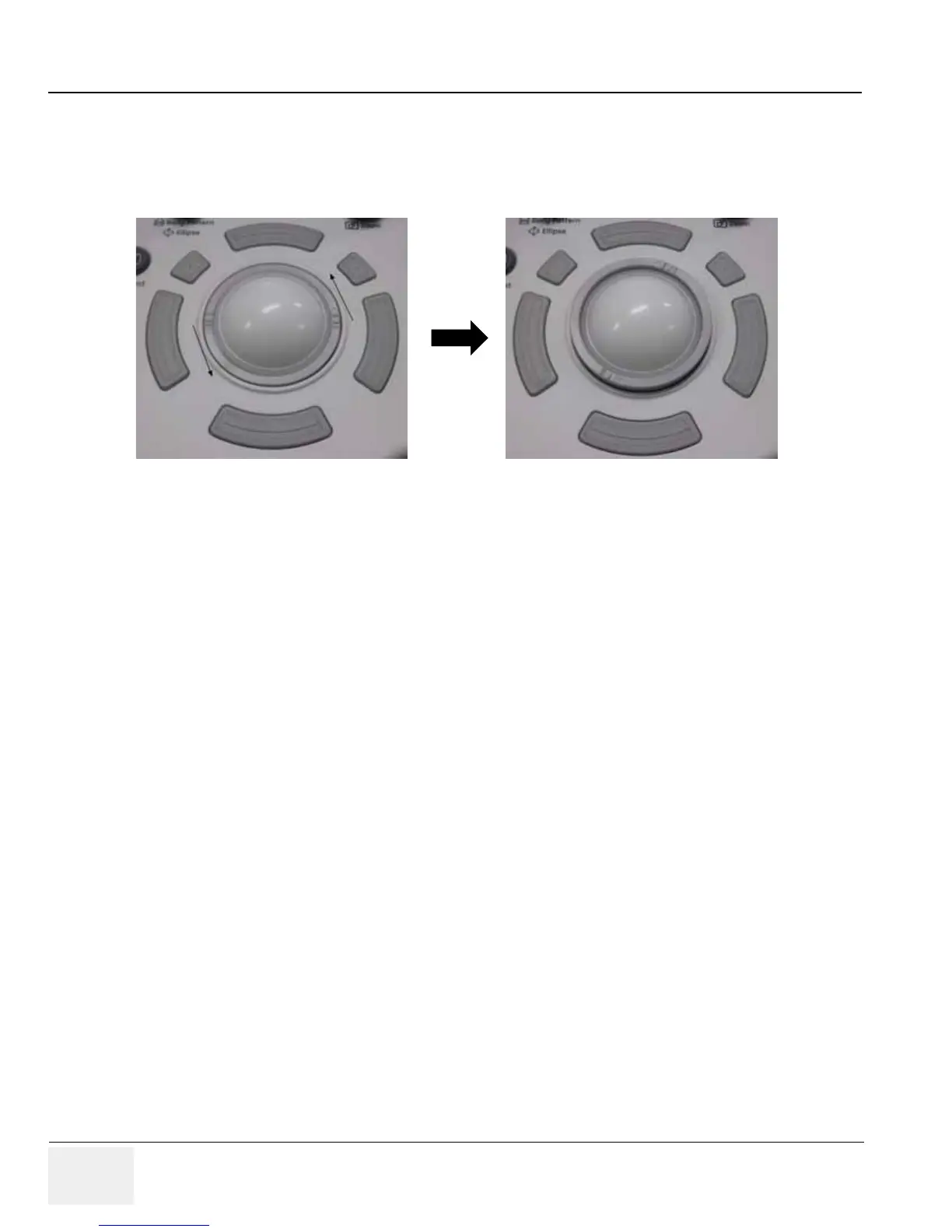

Figure 8-42 Trackball Ring
