GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-85
Section 8-18
Replacement of CSI and Fan
8-18-1 Manpower
One Person, 10 minutes.
8-18-2 Tools
Standard Phillips Screwdriver.
8-18-3 Removal Procedure
1.) Remove Front Cover.
2.) Remove 4 screws from Indicator Bracket.

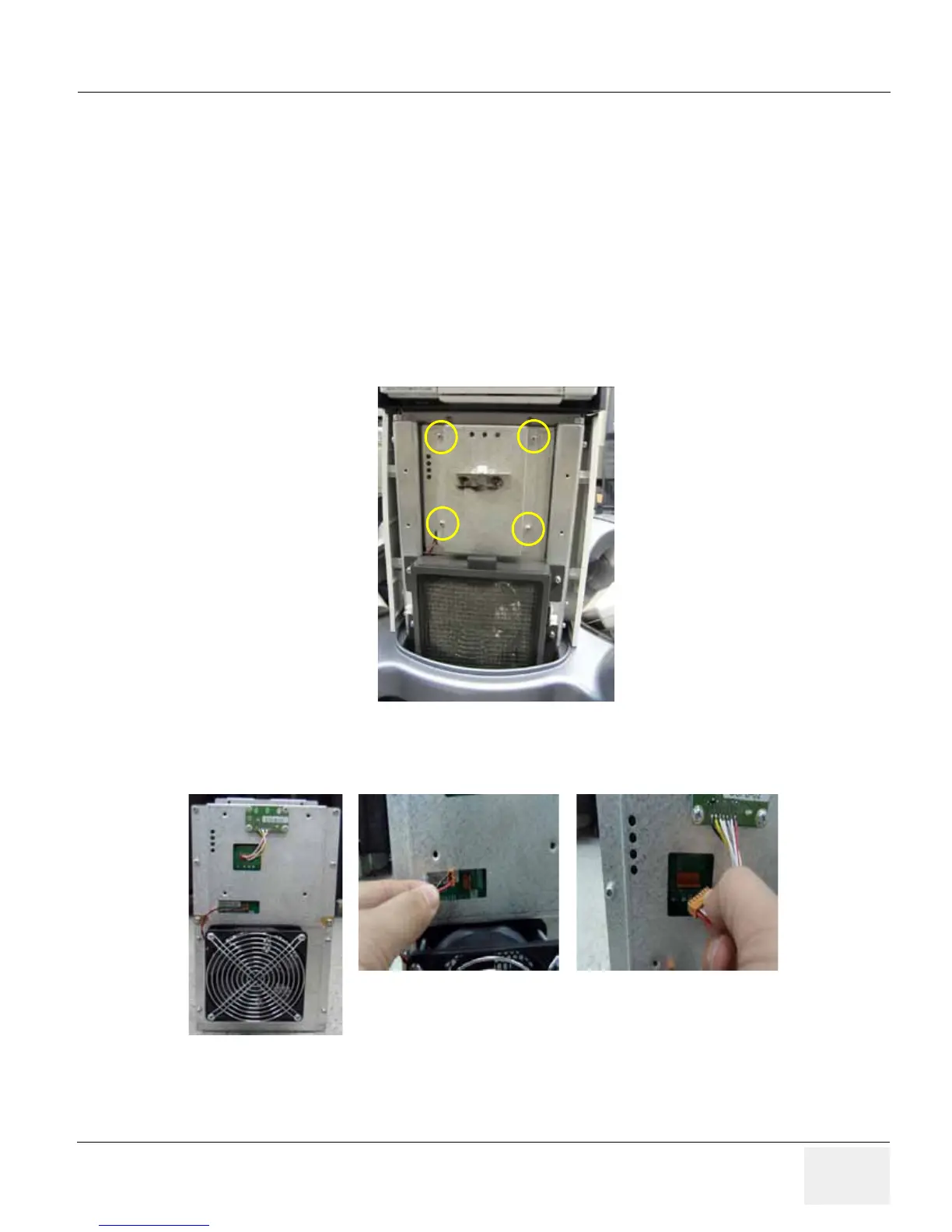

Figure 8-87 Indicator Bracket
3.) Separate the LED connector and FAN connector.
Figure 8-88 Removing the front cover Assy
