GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
7-20 Section 7-7 - Troubleshooting Trees, Instructions and Tech Tips
7-7-1 System does not boot up

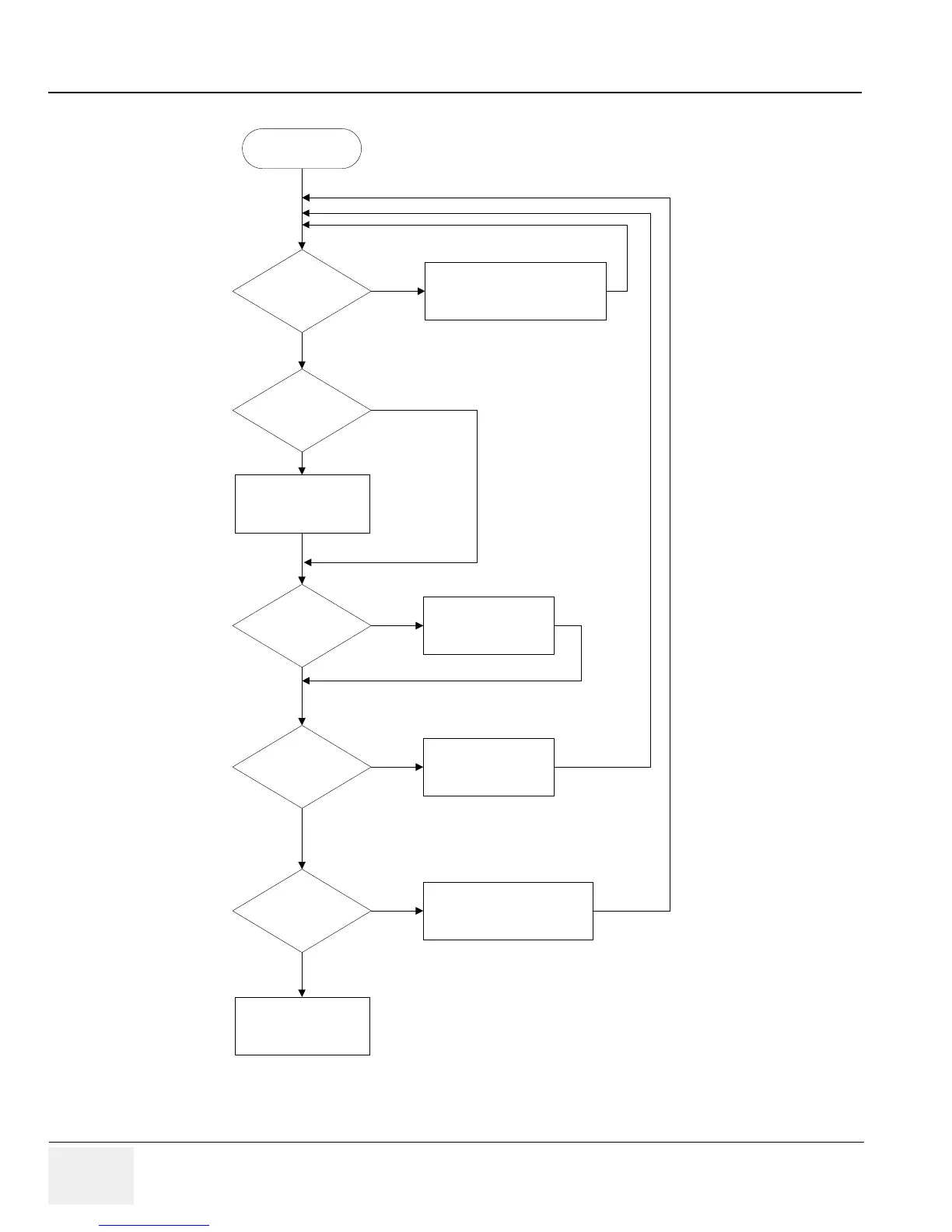

Figure 7-12 System does not Power On / Boot Up
System doesn’t boot
Is
Standby Switch
illuminated ?
Verify th
at
- Power Cord is connected to Mains
- Power Switch is turned on
(on the backside of the system)
Is
Standby Switch
orange ?
Press
Standby Switch till it
changes to green
System starts booting
Press Standby Switch
for approximately 5 sec.
until system is down.
Chec
k cables between
Console and Monitor
Is there
any picture on
the monitor ?
Is there any picture on
the touch screen ?
Shut off the power switch
Wait for 10 sec.
Shut on the power switch again
Is there any picture on
the monitor ?
Other error. Please
contact the service
engineer
To Next Page
