GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
8-126 Section 8-29 - Replacement of the Peripherals
8-29-2-2 Color printer on High Console
8-29-2-2-1 Manpower
1 person, 1 hour
8-29-2-2-2 Tools
Philips screwdriver
8-29-2-2-3 Removal Procedure
1.) Pull out the cabinet.

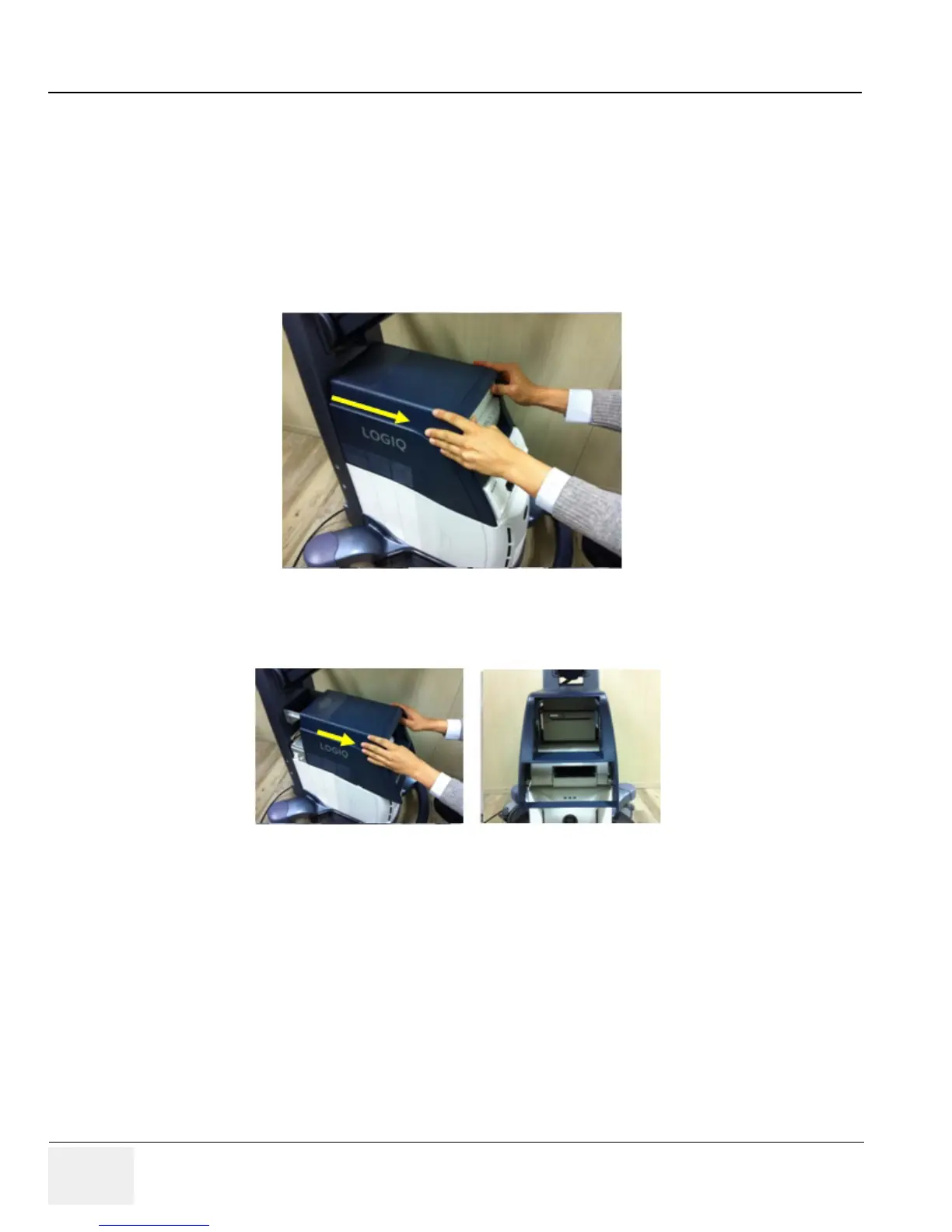

Figure 8-144 Remove the cabinet
2.) Draw the cabinet out of the High frame Assy.
3.) Remove the Color printer cables. (refer to Section 3-6-3)
Figure 8-145 Drawing out the High cabinet
To Next Page
