Chapter 5 - Components and Functions (Theory) 5-31
5-10-2 CSD Top Page

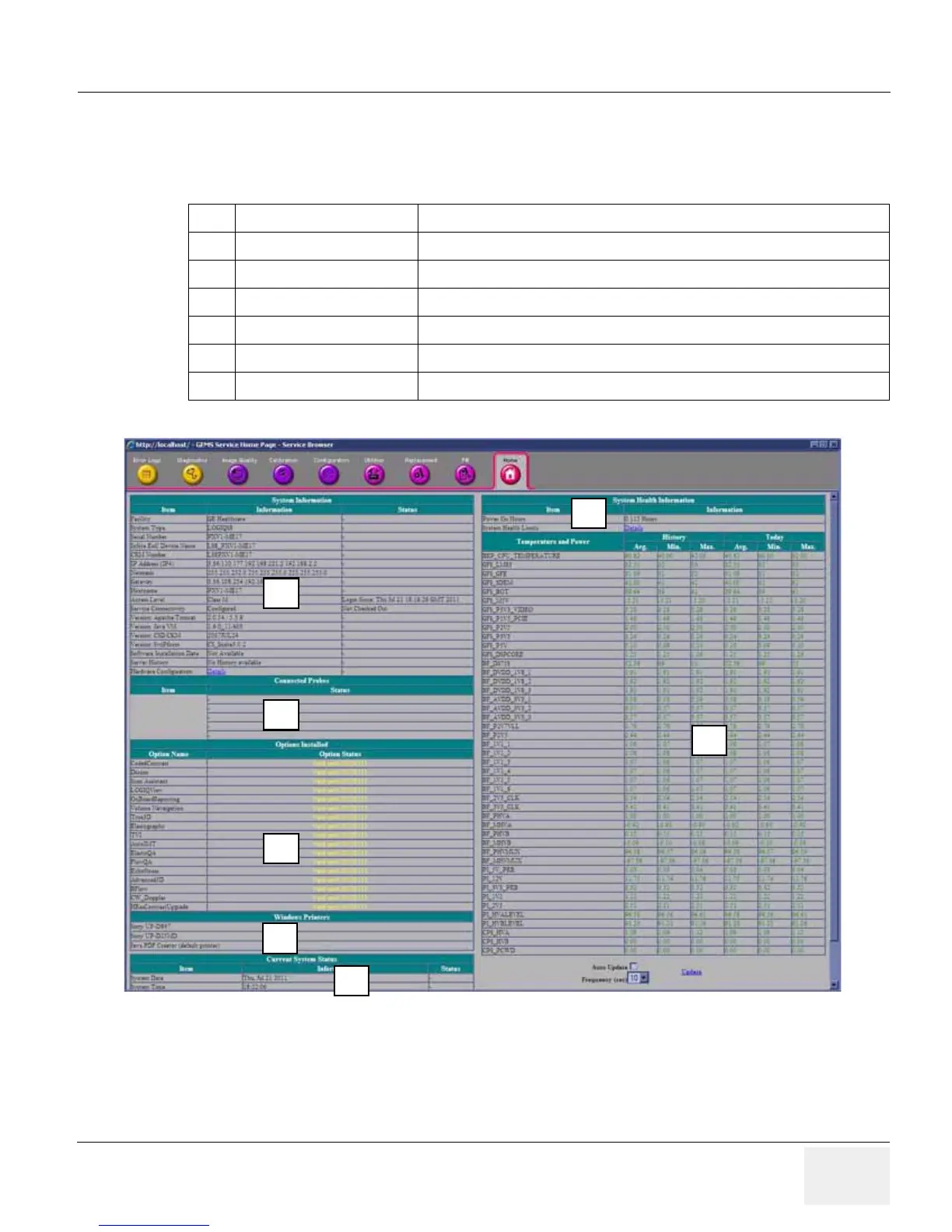

5-10-2-1 General Layout
Table 5-11
1
System Information System ID, Serial, IP Address, InSite StatusÅc.etc
2
Connected Probes Connected and System recognized probe listed
3
Option Enabled Options and its expiration date
4
Peripheral Connected and system recognized peripheral listed
5
System Status System Date, Time...etc
6
Power On Hours System Power ON hours. Health Limit link should not be referenced.
7
Temperature and Voltage Details on the following section
